Cameron 214 Series Micro Drill Press
Cameron 214 Series Micro Drill Press
SKU:DRI-ca46c1
Professional-grade micro drill press with variable speed control and interchangeable spindle for precise drilling and milling operations.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
Cameron 214 Series Micro Drill Press
$329.99
Quantity: 1
Claim Your Seller Account
Cameron 214 Series Micro Drill Press
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

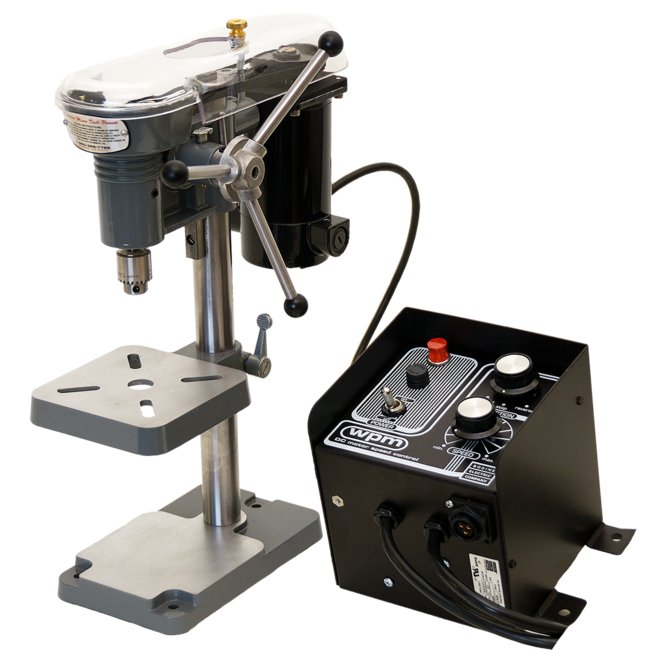

The Cameron 214 Series Micro Drill Press is a precision-engineered tool designed to meet the demanding needs of both professional and hobbyist users. Featuring a robust 1/7th HP Heavy-Duty DC motor with variable speed control (1000-30,000 RPM), this drill press ensures consistent speed and torque for precise drilling and light milling operations. The interchangeable spindle with linear sealed bearings allows for quick and easy spindle changes, enhancing operational efficiency. With features like a smooth Rack and Pinion Feed, clear plastic safety guard, and a slotted 4" x 4" work table, this drill press offers versatility and safety in every use. The Cameron 214 Series is a reliable and durable tool for a wide range of drilling applications.
Product Specifications
Features Features
1/7th HP Heavy-Duty DC motorVariable speed control unit (5 amp / 115 VAC) maintains speeds from 1000-30,000 RPMInterchangeable spindle with linear sealed bearings for quick and easy spindle change. (No longer needs oiling)Smooth Rack and Pinion FeedDrills Small Holes (0.002" to 5/32")Can Drill to the Center of a 5" Work PieceSpindle Run Out at the Chuck Mounting Taper is within 0.0002"Clear Plastic Safety GuardSlotted 4" x 4" work table with 5/8" center holeJ0 Taper
Technical Specs Brands
Cameron
Technical Specs Center Column
2-1/2 in
Technical Specs Chuck Adjustable Table
5-3/4 in
Technical Specs Chuck Base
7 in
Technical Specs Depth
11 in
Technical Specs Drill Size
0-5/32 in
Technical Specs Height With Depth Indicator
17 in
Technical Specs Hole Size Varies With Chuck Size
0.002 to 5/32 in
Technical Specs Shipping Weight
12 lb
Technical Specs Spindle Feed Travel
1-1/4 in
Technical Specs Table Center Hole
5/8 in
Technical Specs Table Size With Clamping Slots
4 x 4 in
Technical Specs Width
5-1/4 in
Technical Specs Within Chuck Spindle Runout At Mounting Taper
0.002 in
