Cameron 214 Series Micro Drill Press
Cameron 214 Series Micro Drill Press
SKU:DRI-37e6af
Enhanced precision and efficiency with Cameron 214 Series Micro Drill Press. Variable speed control with seamless spindle changes for precise drilling.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Cameron 214 Series Micro Drill Press
$549.99
Quantity: 1
Claim Your Seller Account
Cameron 214 Series Micro Drill Press
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

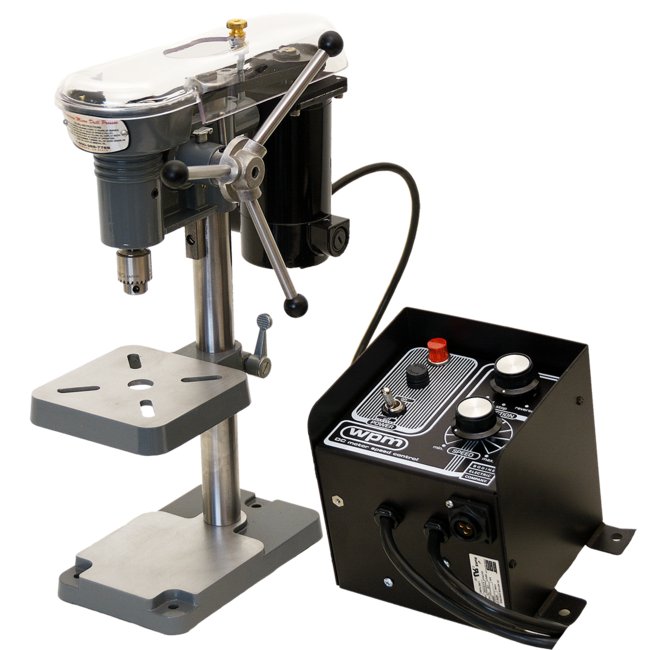

The Cameron 214 Series Micro Drill Press is a precision tool designed for seamless functionality. Powered by a 1/7th HP heavy-duty DC motor, it offers variable speed control from 1000 to 30,000 RPM. Featuring an interchangeable spindle with linear sealed bearings, this drill press allows for quick and easy spindle changes without the need for oiling. With a spindle runout of just 0.0002 inches at the chuck mounting taper, it ensures high precision drilling. The smooth rack and pinion feed, along with a clear plastic safety guard, enhance user safety and convenience. Ideal for drilling small holes ranging from 0.002 to 5/32 inches, this drill press offers reliability and efficiency.
Product Specifications
Features Features
1/7th HP heavy duty DC motorVariable speed control unit (5 amp / 115 VAC) maintains speeds from 1000-30,000 RPMInterchangeable spindle with linear sealed bearings for quick and easy spindle change. (No longer needs oiling)Smooth Rack and Pinion FeedDrills Small Holes (0.002" to 5/32")Can Drill to the Center of a 5" Work PieceSpindle Run Out at the Chuck Mounting Taper is within 0.0002"Clear Plastic Safety GuardSlotted 4" x 4" work table with 5/8" center holeJ0 Taper
Technical Specs Brands
Cameron
Technical Specs Center Column
2-1/2 in
Technical Specs Chuck Adjustable Table
5-3/4 in
Technical Specs Chuck Base
7 in
Technical Specs Depth
11 in
Technical Specs Drill Size
0 to 5/32 in
Technical Specs Height With Depth Indicator
17 in
Technical Specs Hole Size Varies With Chuck Size
0.002 to 5/32 in
Technical Specs Shipping Weight
9/12 lb
Technical Specs Spindle Feed Travel
1-1/4 in
Technical Specs Table Center Hole
5/8 in
Technical Specs Table Size With Clamping Slots
4 x 4 in
Technical Specs Width
5-1/4 in
Technical Specs Within Chuck Spindle Runout At Mounting Taper
0.0002 in
