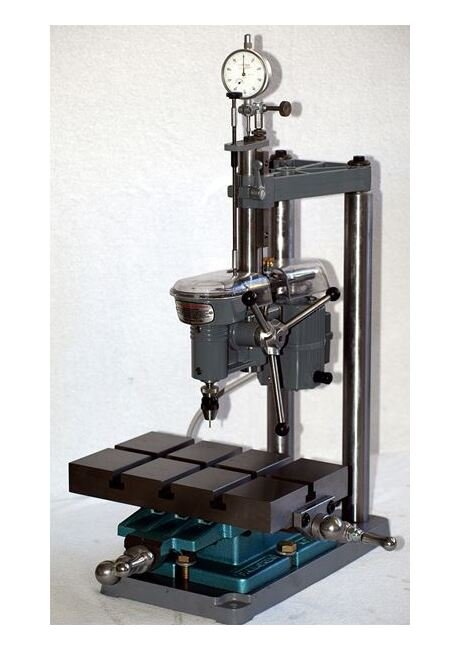

Cameron MD70 Micro Drill Press

Name: Cameron MD70 Micro Drill Press
Brand: Penn Tool Co.
SKU: DRI-31e8c6
Price: 799.99 USD
Availability: OutOfStock

SKU:DRI-31e8c6

Powerful and precise Cameron MD70 Micro Drill Press with Jacobs Key Type Chuck and Dial Indicator for professional drilling needs.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Cameron MD70 Micro Drill Press offers precise drilling capabilities with a Jacobs 5/32' Key Type Chuck and 1/2' Travel Dial Indicator. Powered by a 1/7 hp motor, it provides spindle speeds ranging from 9500 rpm to 30005 rpm, ensuring efficient performance. The 6-1/4' spindle feed travel, clear belt safety guard, and compact design make it ideal for professional workshops and institutional use. Measuring 12-1/8' in width, 23-1/2' in height, and 18-1/8' in depth, this drill press guarantees accuracy and reliability in every operation.

Product Specifications

Additional Information Additional Information

Single speed continuous duty 1/7th HP universal Heavy-Duty motor. (manufactured by Cameron Micro Drill Presses)Clear belt safety guard for easy viewing of belt & pulley area

Technical Specs Brands

Cameron

Technical Specs Depth

18-1/8 in

Technical Specs Distance From Spindle Center To Edge Of Columns

8 in

Technical Specs Height

23-1/2 in

Technical Specs Maximum Distance From Chuck To Base

5 in

Technical Specs Motor Horse Power Hp

1/7 hp

Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp

17000 rpm | 30005 rpm | 9500 rpm

Technical Specs Spindle Feed Travel

6-1/4 in

Technical Specs Width

12 -1/8 in

Technical Specs Working Area Deep

16-3/8 in

Technical Specs Working Area Wide

11-7/8 in

Cameron MD70 Micro Drill Press
