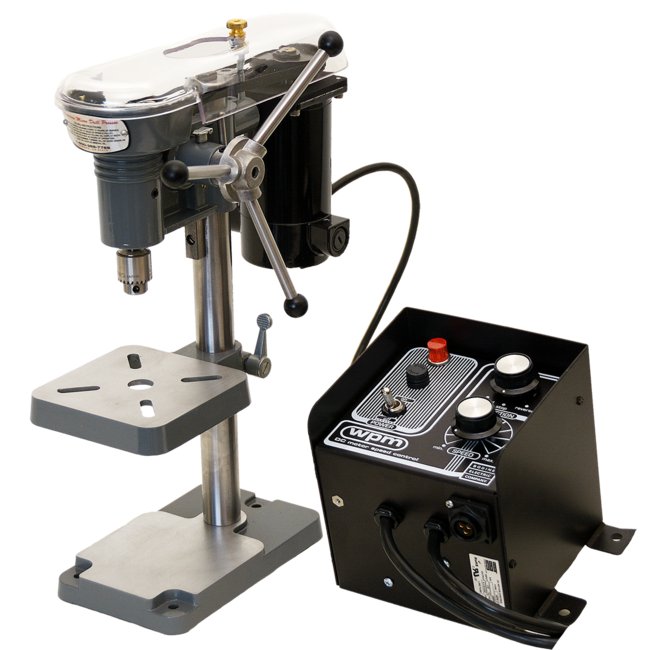

The Series 214-D3 Cameron Micro Drill Press is a reliable and efficient tool designed for precision drilling and light milling tasks. Featuring a 1/7th HP heavy-duty DC motor and a variable speed control unit, this drill press offers a wide speed range from 1000 to 30,000 RPM for versatility in various applications. The interchangeable spindle with linear sealed bearings allows for quick and easy spindle changes without the need for oiling. With a spindle runout of only 0.0002" at the chuck mounting taper, this drill press ensures accuracy and consistency in drilling operations. The clear plastic safety guard, smooth rack and pinion feed, and slotted 4" x 4" work table with a 5/8" center hole enhance user safety and convenience during operation.
Product Specifications
Features Features
1/7th HP heavy duty DC motorVariable speed control unit (5 amp / 115 VAC) maintains speeds from 1000-30,000 RPMInterchangeable spindle with linear sealed bearings for quick and easy spindle change. (No longer needs oiling)Smooth Rack and Pinion FeedDrills Small Holes (0.002" to 5/32")Can Drill to the Center of a 5" Work PieceSpindle Run Out at the Chuck Mounting Taper is within 0.0002"Clear Plastic Safety GuardSlotted 4" x 4" work table with 5/8" center holeJ0 Taper
Technical Specs Brands
Cameron
Technical Specs Center Column
2-1/2 in
Technical Specs Chuck Adjustable Table
5-1/4 in
Technical Specs Chuck Base
7 in
Technical Specs Depth
11 in
Technical Specs Drill Size
0 to 5/32 in
Technical Specs Height With Depth Indicator
17 in
Technical Specs Hole Size Varies With Chuck Size
0.002 to 5/32 in
Technical Specs Shipping Weight
9/12 lb
Technical Specs Spindle Feed Travel
1-1/4 in
Technical Specs Table Center Hole
5/8 in
Technical Specs Table Size With Clamping Slots
4 x 4 in
Technical Specs Width
5-1/4 in
Technical Specs Within Chuck Spindle Runout At Mounting Taper
.0002 in
