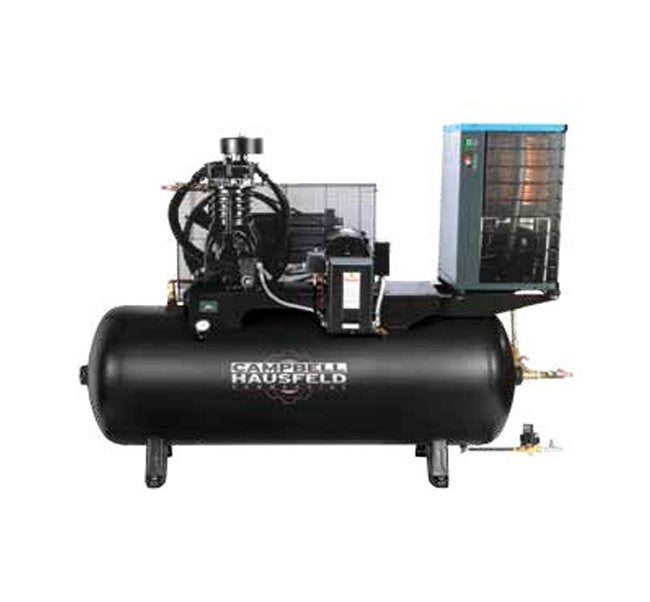

Campbell Hausfeld 21.1 CFM Three Phase Moisture Free Air Compressor

Name: Campbell Hausfeld 21.1 CFM Three Phase Moisture Free Air Compressor
Brand: Marcuse & Son, Inc.
SKU: CAM-7e6f14
Price: 2399.99 USD
Availability: OutOfStock

SKU:CAM-7e6f14

Powerful 21.1 CFM Three Phase Air Compressor for automotive paint and body shops.

$2,399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Campbell Hausfeld 21.1 CFM Three Phase Fully Packaged Moisture Free Air Compressor is a reliable solution for automotive paint and body shops. Featuring a cast iron, two-stage compressor pump and a refrigerated air dryer, this compressor ensures the delivery of dry, moisture-free compressed air. With a powerful 5 HP motor and a tank capacity of 80 gallons, it operates at a maximum pressure of 175 psi. This compressor is equipped with industrial-duty components, including a NEMA motor, magnetic starter, ASME Code tank, automatic tank drain, and a digital hour meter.

Product Specifications

Features 0

Industrial-duty NEMA motorMounted and wired magnetic starterASME Code tankAutomatic tank drainDigital hour meter

Specifications Brand

Campbell Hausfeld

Specifications Displacement

21.1 ft³/min

Specifications Displacement At 175 Psi Rating

16.6 ft³/min

Specifications Displacement At 90 Psi Rating

17.2 ft³/min

Specifications Material

Cast Iron

Specifications Maximum Pressure

175 psi

Specifications Motor Power

5 hp

Specifications Number Of Stages

Specifications Phase

Specifications Pump Speed

685 rpm

Specifications Series

Paint and Body

Specifications Tank Capacity

80 gal

Specifications Tank Style

Horizontal

Specifications Voltage

208 V | 230 V | 460 V

Campbell Hausfeld 21.1 CFM Three Phase Moisture Free Air Compressor
