Campbell Hausfeld 5HP Rotary Screw Compressor - 18.2ft³/min, 230V, 3-Phase
Campbell Hausfeld 5HP Rotary Screw Compressor - 18.2ft³/min, 230V, 3-Phase
SKU:CAM-5ebd37
High-performance 5HP Rotary Screw Compressor for industrial applications. Efficient, reliable, and low noise.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Campbell Hausfeld 5HP Rotary Screw Compressor - 18.2ft³/min, 230V, 3-Phase
$3,499.99
Quantity: 1
Claim Your Seller Account
Campbell Hausfeld 5HP Rotary Screw Compressor - 18.2ft³/min, 230V, 3-Phase
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Campbell Hausfeld 5HP Rotary Screw Compressor is a high-performance solution designed for demanding applications in collision repair shops, tire stores, fabrication facilities, and small manufacturing plants. With a motor power of 5 HP and delivering 18.2 ft³/min of air at 150 psi, this German-made air compressor boasts a compact airend module that ensures efficiency, reliability, and ease of maintenance. Its pre-wired electrical control panel, instrumentation gauges, and 80-gallon ASME air tank provide convenience and functionality, making it an ideal choice for industrial settings. Additionally, the Campbell Hausfeld compressor operates at lower noise levels than traditional piston compressors, offering a quieter working environment.
Product Specifications

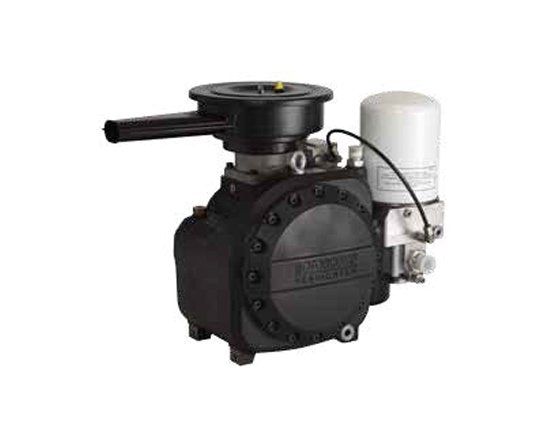

German Made Airend 0
This compact air module integrates the main components of the compressor system thereby reducing interconnecting pipes and connections. This eliminates leakage and improves efficiency.The spin-on oil filter and separator makes for easy service and maintenance without the need for special tools.
Specifications Air Delivery
18.2 ft³/min
Specifications Brand
Campbell Hausfeld
Specifications Extended Warranty Available
3 years
Specifications Height
52 in
Specifications Length
64 in
Specifications Maximum Pressure
150 psi
Specifications Motor Power
5 hp
Specifications Noise Level At 1 Minute
79 dBA
Specifications Phase
3
Specifications Tank Capacity
80 gal
Specifications Voltage
230 V
Specifications Width
20 in
Standard Features 0
Compact airend module integrates the main compressor components into an efficient, reliable packageContinuous, 100% duty cyclePre-wired electrical control panel simplifies the initial electrical hookupInstrumentation - pressure gauge, temperature gauge, high temp light, hour meterIlluminated ON/OFF switch, emergency stop buttonEasy access spin-on oil filter and air-oil separator80 gallon ASME air tankLower operating noise - up to 9 dBA quieter than piston compressor
