Campbell Hausfeld Duplex Series Air Compressor - 42.2 ft³/min, 175 psi

Name: Campbell Hausfeld Duplex Series Air Compressor - 42.2 ft³/min, 175 psi
Brand: Marcuse & Son, Inc.
SKU: CAM-83b9ee
Price: 3299.99 USD
Availability: OutOfStock

SKU:CAM-83b9ee

Stay productive with the Campbell Hausfeld 42.2 ft³/min Duplex Series Air Compressor for ultimate performance and operational control.

$3,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

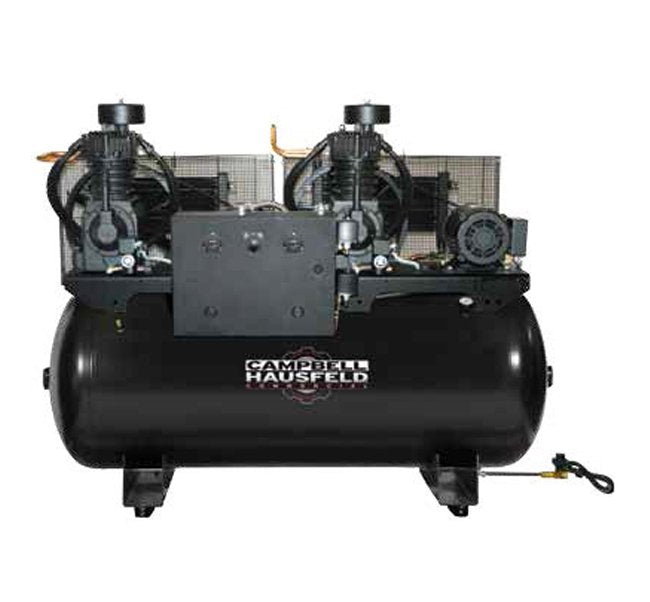

Experience uninterrupted performance with the Campbell Hausfeld 42.2 ft³/min Duplex Series Air Compressor. Featuring two individual compressor pumps and motors on a single air receiver, it allows independent or simultaneous operation based on load conditions. The deluxe UL listed control panel ensures easy monitoring, while included features like aftercooler, automatic tank drain, and low oil guard enhance efficiency. With a tank capacity of 120 gallons and a maximum pressure of 175 psi, this compressor is a reliable choice for industrial applications.

Product Specifications

Specifications Brand

Campbell Hausfeld

Specifications Displacement

42.2 ft³/min

Specifications Displacement At 175 Psi Rating

33.2 ft³/min

Specifications Displacement At 90 Psi Rating

34.4 ft³/min

Specifications Maximum Pressure

175 psi

Specifications Motor Power

5 hp

Specifications Number Of Motor

Specifications Number Of Stages

Specifications Phase

Specifications Pump Speed

685 rpm

Specifications Series

Duplex

Specifications Tank Capacity

120 gal

Specifications Tank Style

Horizontal

Specifications Total Motor Power

10 hp

Specifications Voltage

230 V
