Canvas Phenolic Rod
Canvas Phenolic Rod
SKU:SHA-7d70e3
Get the Canvas Phenolic Rod for superior strength and durability. Meets FED. SPEC. LP-509A TYPE II/CE, MIL-P-15035FBE, MIL-I-24768/14 TYPE FBG standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Canvas Phenolic Rod
$29.99
Quantity: 1
Claim Your Seller Account
Canvas Phenolic Rod
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

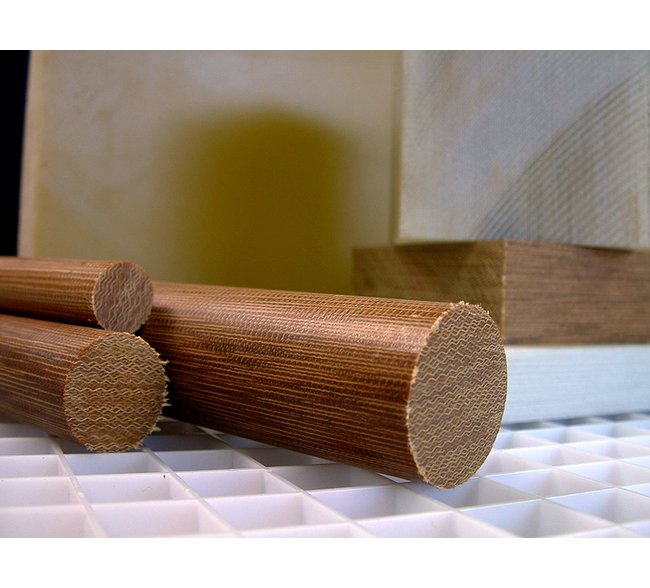

The Canvas Phenolic Rod is a reliable thermoset composite material that meets FED. SPEC. LP-509A TYPE II/CE, MIL-P-15035FBE, and MIL-I-24768/14 TYPE FBG standards. Crafted from medium weave cotton cloth fabric infused with phenolic resins, this rod offers exceptional physical strength, high impact resistance, and excellent wear resistance. With properties like high tensile and flexural strength, along with a maximum operating temperature of 257°F, it is ideal for structural supports, gears, spacers, and more. Its precise dimensions and stringent quality control ensure consistent performance in mechanical and electrical applications.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.22 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.10 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.050 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
550 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1500000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
15000 psi
Specifications Flexural Strength Lengthwise Astm D790
17500 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.5 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.7 ft·lb/in
Specifications Length
4 ft
Specifications Maximum Operating Temperature
257 ºF
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
11000 psi
Specifications Tolerance
± 0.001 in
