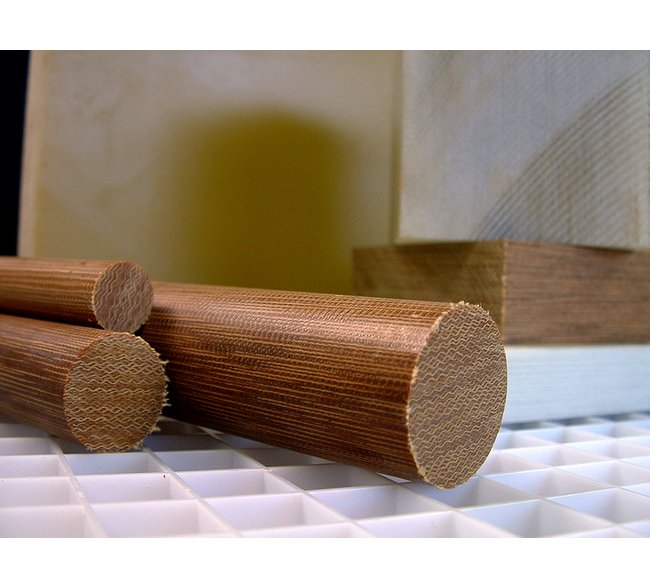

Canvas Phenolic Rod - Natural
Canvas Phenolic Rod - Natural
SKU:SHA-b8f98b
High-quality Canvas Phenolic Rod offering durability, high strength, and electrical properties for various applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The Canvas Phenolic Rod - Natural is a high-quality thermoset composite material ground from sheet, meeting FED. SPEC. LP-509A TYPE II/CE, MIL-P-15035FBE, and MIL-I-24768/14 TYPE FBG standards. With a set shape that ensures durability and reliability, this rod offers exceptional physical strength, resiliency, and electrical properties. Ideal for mechanical and electrical applications, it boasts impressive tensile, flexural, and compressive strengths. Crafted with medium weave cotton cloth fabrics and phenolic resins, it provides wear resistance, low moisture absorption, and cost-effective mechanical strength.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.22 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.10 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.050 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
550 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1500000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
15000 psi
Specifications Flexural Strength Lengthwise Astm D790
17500 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.5 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.7 ft·lb/in
Specifications Length
4 ft
Specifications Maximum Operating Temperature
257 ºF
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
11000 psi
Specifications Tolerance
± 0.001 in
