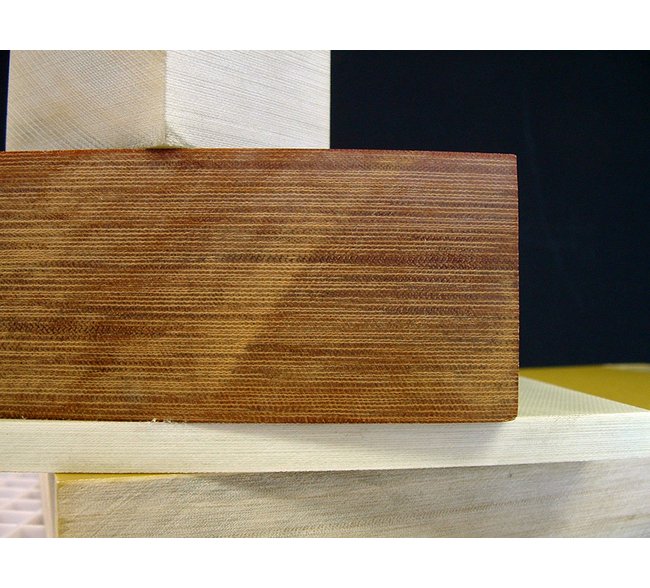

Canvas Phenolic Sheet
Canvas Phenolic Sheet
SKU:SHA-196e80
Durable Canvas Phenolic Sheet with superior strength and electrical properties for various applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Canvas Phenolic Sheet
$89.99
Quantity: 1
Claim Your Seller Account
Canvas Phenolic Sheet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Canvas Phenolic Sheet is a durable thermoset composite that meets FED. SPEC. LP-509A TYPE II/CE, MIL-P-15035FBE, and MIL-I-24768/14 TYPE FBG standards. Manufactured by applying heat and pressure to layers of medium weave cotton cloth impregnated with phenolic resins, this sheet offers exceptional physical strength, resiliency, and electrical properties. With dimensions of 48 x 96 inches and a thickness of 1.750 inches, it boasts tensile strengths of 11000 psi (lengthwise) and 9000 psi (crosswise), making it ideal for structural supports, gears, and bearing surfaces.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.22 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.10 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.050 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
550 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1500000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
15000 psi
Specifications Flexural Strength Lengthwise Astm D790
17500 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.5 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.7 ft·lb/in
Specifications Maximum Operating Temperature
257 ºF
Specifications Sheet Size
48 x 96 in
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
11000 psi
Specifications Thickness
1.750 in
Specifications Tolerance
± 0.045 in
Specifications Weight
12.91 lb/ft²
