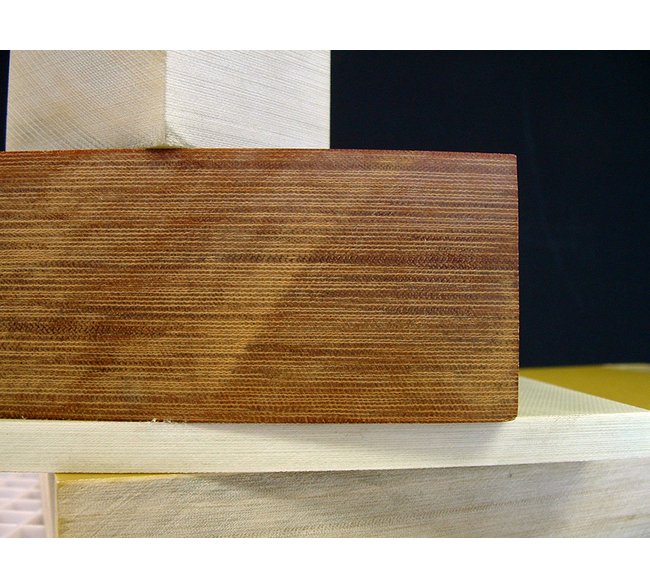

Canvas Phenolic Sheet - Industrial Grade
Canvas Phenolic Sheet - Industrial Grade
SKU:SHA-338ed8
Premium Canvas Phenolic Sheet with superior mechanical strength and electrical properties. Compliant with key industrial standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Canvas Phenolic Sheet - Industrial Grade
$129.99
Quantity: 1
Claim Your Seller Account
Canvas Phenolic Sheet - Industrial Grade
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA CE Canvas Phenolic Sheet in natural color is an industrial-grade thermoset composite material meeting FED. SPEC. LP-509A TYPE II/CE, MIL-P-15035FBE, and MIL-I-24768/14 TYPE FBG standards. Manufactured by applying heat and pressure to cotton cloth impregnated with phenolic resins, it offers exceptional mechanical strength, high impact resistance, and thermal stability. With a thickness of 0.250 in, this sheet provides excellent electrical properties, making it ideal for structural supports, gears, and bearing surfaces in various mechanical and electrical applications.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.22 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.10 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.050 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
550 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1500000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
15000 psi
Specifications Flexural Strength Lengthwise Astm D790
17500 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.5 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.7 ft·lb/in
Specifications Maximum Operating Temperature
257 ºF
Specifications Sheet Size
48 x 96 in
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
11000 psi
Specifications Thickness
0.250 in
Specifications Tolerance
± 0.015 in
Specifications Weight
1.87 lb/ft²
