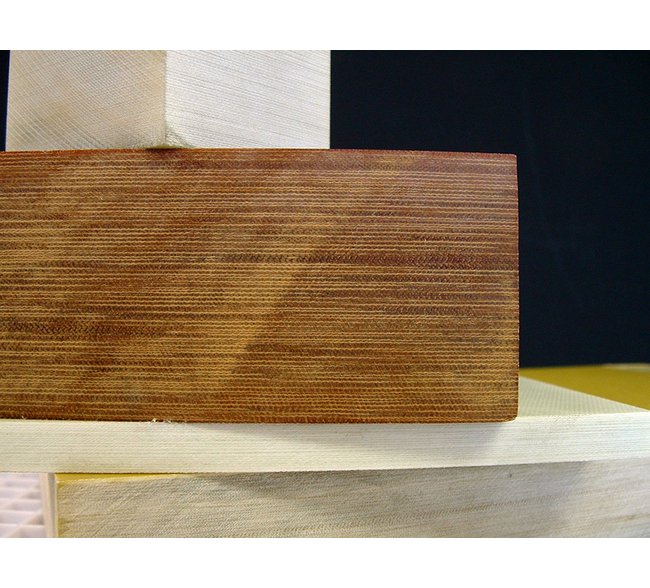

Canvas Phenolic Sheet - Natural, 0.625 in x 48 x 96 in
Canvas Phenolic Sheet - Natural, 0.625 in x 48 x 96 in
SKU:SHA-604a98
Durable Canvas Phenolic Sheet with high tensile strength, ideal for mechanical and electrical applications.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Canvas Phenolic Sheet - Natural, 0.625 in x 48 x 96 in
$239.99
Quantity: 1
Claim Your Seller Account
Canvas Phenolic Sheet - Natural, 0.625 in x 48 x 96 in
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Canvas Phenolic Sheet is a durable thermoset composite material meeting FED. SPEC. LP-509A TYPE II/CE, MIL-P-15035FBE, and MIL-I-24768/14 TYPE FBG standards. This sheet offers exceptional physical strength, resiliency, and electrical properties, making it ideal for various mechanical and electrical applications. With a medium weave cotton cloth fabric combined with phenolic resins, it provides good wear resistance, low moisture absorption, and high mechanical strength for structural supports, gears, bearings, and more. Its impressive characteristics include a Rockwell Hardness of M100, high tensile and flexural strength, and a maximum operating temperature of 257°F.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.22 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.10 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.050 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
550 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1500000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
15000 psi
Specifications Flexural Strength Lengthwise Astm D790
17500 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.5 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.7 ft·lb/in
Specifications Maximum Operating Temperature
257 ºF
Specifications Sheet Size
48 x 96 in
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
11000 psi
Specifications Thickness
0.625 in
Specifications Tolerance
± 0.027 in
Specifications Weight
4.61 lb/ft²
