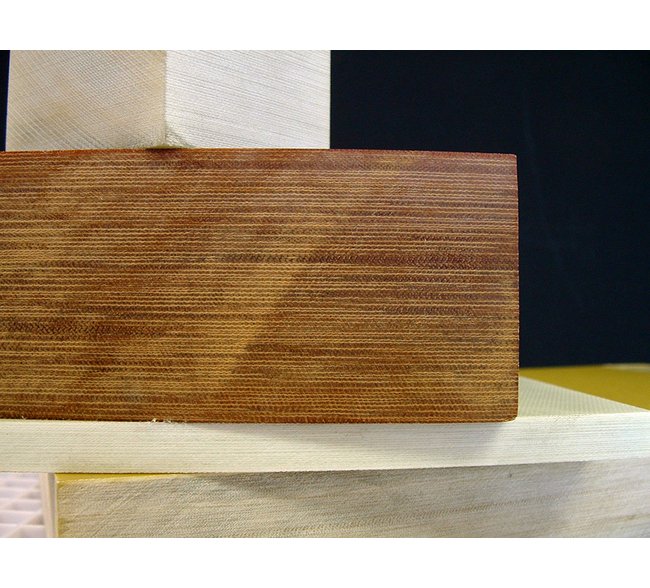

Canvas Phenolic Sheet - NEMA CE Natural
Canvas Phenolic Sheet - NEMA CE Natural
SKU:SHA-20383d
Canvas Phenolic Sheet impregnated with phenolic resins, meeting FED. SPEC. LP-509A TYPE II/CE & MIL standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Canvas Phenolic Sheet - NEMA CE Natural
$129.99
Quantity: 1
Claim Your Seller Account
Canvas Phenolic Sheet - NEMA CE Natural
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Canvas Phenolic Sheet in Natural color is manufactured to meet FED. SPEC. LP-509A TYPE II/CE, MIL-P-15035FBE, and MIL-I-24768/14 TYPE FBG standards. Constructed by heat and pressure on layers of cotton cloth impregnated with phenolic resins, this thermoset composite offers exceptional physical strength, resiliency, and excellent electrical properties. With a thickness of 1.500 in, size of 48 x 96 in, and hardness rated at M100 Rockwell, this sheet provides mechanical, thermal, and electrical benefits for a variety of applications.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.22 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.10 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.050 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
550 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1500000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
15000 psi
Specifications Flexural Strength Lengthwise Astm D790
17500 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.5 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.7 ft·lb/in
Specifications Maximum Operating Temperature
257 ºF
Specifications Sheet Size
48 x 96 in
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
11000 psi
Specifications Thickness
1.500 in
Specifications Tolerance
± 0.041 in
Specifications Weight
11.04 lb/ft²
