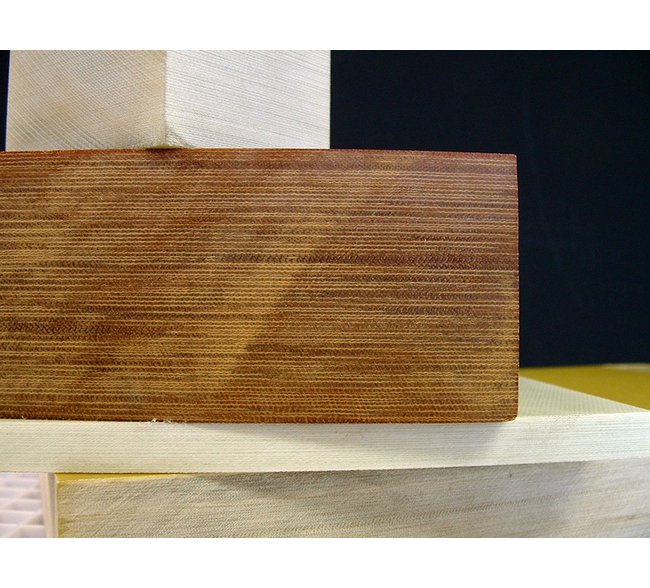

Canvas Phenolic Sheet - NEMA CE - Natural, 1.250 in x 48 x 96 in
Canvas Phenolic Sheet - NEMA CE - Natural, 1.250 in x 48 x 96 in
SKU:SHA-89151f
Canvas Phenolic Sheet - Industrial-grade composite material for mechanical and electrical applications, meeting FED. SPEC. LP-509A, MIL-P-15035FBE, MIL-I-24768/14 standards.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Canvas Phenolic Sheet - NEMA CE - Natural, 1.250 in x 48 x 96 in
$289.99
Quantity: 1
Claim Your Seller Account
Canvas Phenolic Sheet - NEMA CE - Natural, 1.250 in x 48 x 96 in
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet industrial demands with our Canvas Phenolic Sheet. Manufactured per FED. SPEC. LP-509A TYPE II/CE, MIL-P-15035FBE, MIL-I-24768/14 TYPE FBG standards, this composite material offers exceptional physical strength, resilience, and electrical properties. With a medium weave cotton cloth fabric and phenolic resins, it provides wear resistance, low moisture absorption, and high mechanical strength. Ideal for structural supports, gears, spacers, and more. Tolerance: ± 0.037 in. Weight: 9.17 lb/ft².
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.22 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.10 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.050 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
550 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1500000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
15000 psi
Specifications Flexural Strength Lengthwise Astm D790
17500 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.5 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.7 ft·lb/in
Specifications Maximum Operating Temperature
257 ºF
Specifications Sheet Size
48 x 96 in
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
11000 psi
Specifications Thickness
1.250 in
Specifications Tolerance
± 0.037 in
Specifications Weight
9.17 lb/ft²
