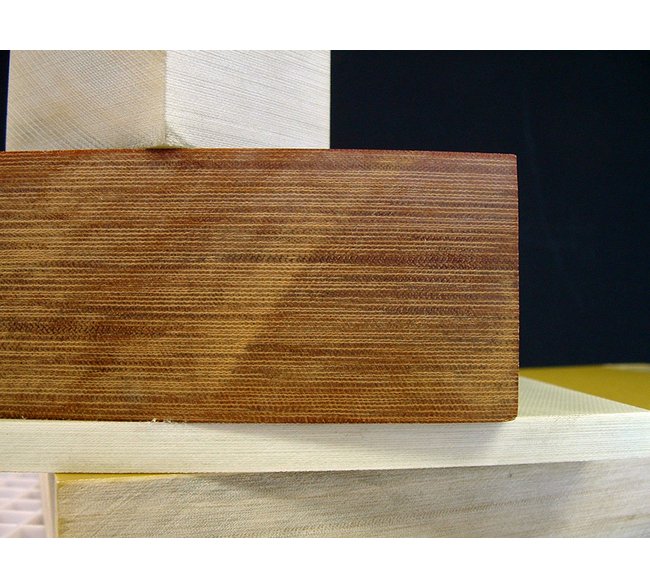

Canvas Phenolic Sheet - NEMA CE Natural 48x96x0.750 in
Canvas Phenolic Sheet - NEMA CE Natural 48x96x0.750 in
SKU:SHA-ae90e1
High-strength Canvas Phenolic Sheet meeting MIL and ASTM standards - ideal for mechanical & electrical applications
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Canvas Phenolic Sheet - NEMA CE Natural 48x96x0.750 in
$249.99
Quantity: 1
Claim Your Seller Account
Canvas Phenolic Sheet - NEMA CE Natural 48x96x0.750 in
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Canvas Phenolic Sheet in Natural finish meets FED. SPEC. LP-509A Type II/CE, MIL-P-15035FBE, and MIL-I-24768/14 Type FBG standards. Crafted from thermosetting resins and medium weave cotton cloth, it offers exceptional physical strength, resiliency, and electrical properties suitable for various mechanical and electrical applications. With a thickness of 0.750 in, and a Rockwell hardness of M100, this sheet delivers high tensile and flexural strengths, making it ideal for structural supports, piston rings, gears, spacers, and bearing surfaces.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.22 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.10 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.050 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
550 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1500000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
15000 psi
Specifications Flexural Strength Lengthwise Astm D790
17500 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.5 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.7 ft·lb/in
Specifications Maximum Operating Temperature
257 ºF
Specifications Sheet Size
48 x 96 in
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
11000 psi
Specifications Thickness
0.750 in
Specifications Tolerance
± 0.029 in
Specifications Weight
5.51 lb/ft²
