Capillary Armor Stainless Steel Stripwound Hose - Type UI

Name: Capillary Armor Stainless Steel Stripwound Hose - Type UI
Brand: Anamet Electrical, Inc.
SKU: IND-0cd7d9
Price: 599.99 USD
Availability: OutOfStock

SKU:IND-0cd7d9

Get the ultimate in crush and corrosion resistance with our Type UI Capillary Armor Stainless Steel Stripwound Hose. RoHS and WEEE compliant.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

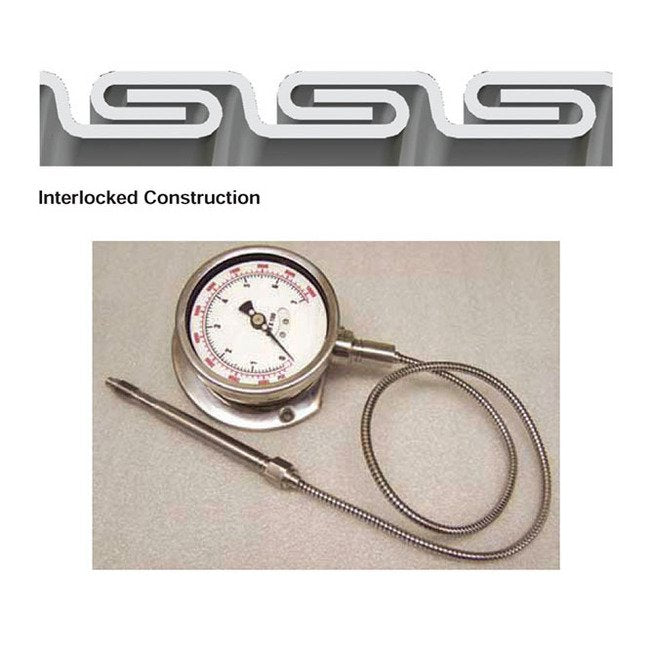

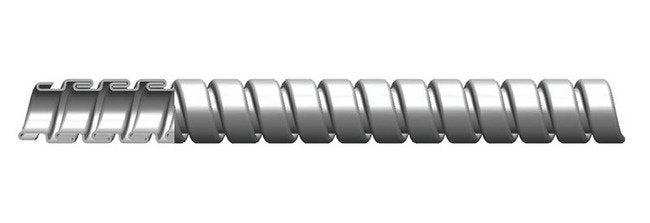

The Capillary Armor Stainless Steel Stripwound Hose - Type UI is expertly crafted with a continuously interlocked Type 304 stainless steel core, ensuring exceptional crush and corrosion resistance. Designed to withstand extreme conditions, this hose will not spring open or unwind. Available with optional jackets in PVC, Silicone, PTFE, and Thermoplastic Rubber. Choose from various materials like brass, galvanized steel, and aluminum. RoHS and WEEE compliant for environmental responsibility.

Product Specifications

Application 0

Flexible with High Crush and Corrosion ResistanceProduct Will Not Spring Open or Unwind 1800ºF Maximum TemperatureFor applications with a max temperature of 1800ºFCasingsArmorProtection for wiring and capillary tubingControl cablesBar Dispenser casing

Specifications Approx Inside Bend Radius

1.5 in | 38.1 mm

Specifications Approx Weight Per 100 Ft

8.9 lbs | 4.04 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.310 to 0.325 in | 7.874 to 8.255 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

500 ft | 152.4 m

Specifications Nominal Size

5/16 in | 8 mm

Specifications Note

Other sizes available on special order.Available in brass, galvanized steel and aluminum.

Specifications Outside Diameter

0.405 to 0.420 in | 10.287 to 10.668 mm

Specifications Packaging

Standard Reels

Specifications Type

Capillary Armor Stainless Steel Stripwound Hose - Type UI
