Capillary Armor Stainless Steel Stripwound Hose - Type UI

Name: Capillary Armor Stainless Steel Stripwound Hose - Type UI
Brand: Anamet Electrical, Inc.
SKU: IND-dec35e
Price: 289.99 USD
Availability: OutOfStock

SKU:IND-dec35e

Durable Capillary Armor Stainless Steel Hose for industrial use. Crush-resistant with multiple jacket options. RoHS WEEE compliant.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

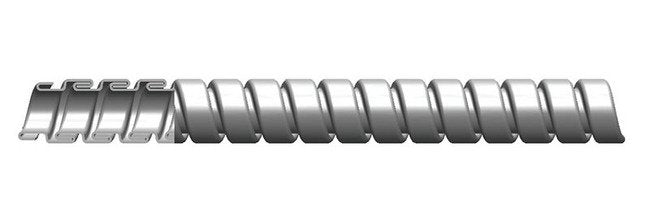

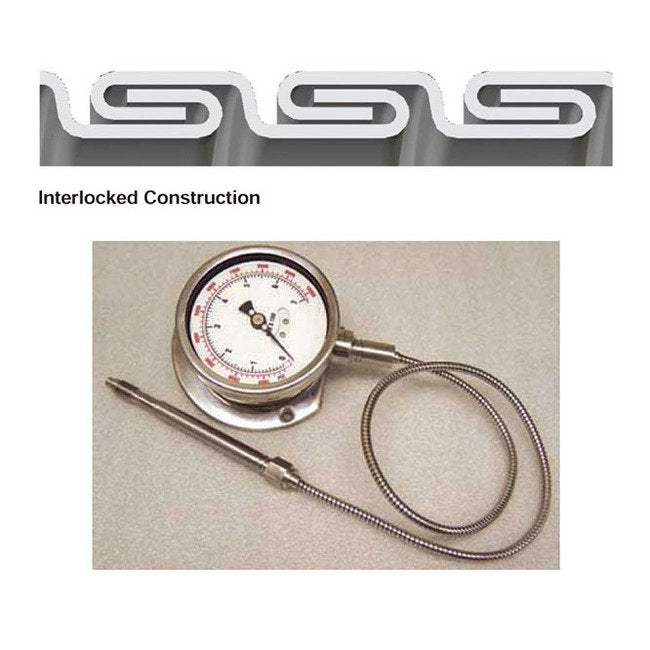

The Capillary Armor Stainless Steel Stripwound Hose - Type UI is expertly crafted using continuously interlocked Type 304 stainless steel core, ensuring superior crush and corrosion resistance. This hose will not spring open or unwind, offering exceptional durability. It comes with the option of extruded PVC, Silicone, PTFE, and Thermoplastic Rubber jackets. Certified RoHS and WEEE compliant, making it a reliable choice for industrial applications requiring high crush resistance and protection for wiring and capillary tubing.

Product Specifications

Application 0

Flexible with High Crush and Corrosion ResistanceProduct Will Not Spring Open or Unwind 1800ºF Maximum TemperatureFor applications with a max temperature of 1800ºFCasingsArmorProtection for wiring and capillary tubingControl cablesBar Dispenser casing

Specifications Approx Inside Bend Radius

1.5 in | 38.1 mm

Specifications Approx Weight Per 100 Ft

4.9 lbs | 2.22 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.180 to 0.195 in | 4.572 to 4.953 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

1000 ft | 304.8 m

Specifications Nominal Size

3/16 in | 5 mm

Specifications Note

Other sizes available on special order.Available in brass, galvanized steel and aluminum.

Specifications Outside Diameter

0.275 to 0.290 in | 6.985 to 7.366 mm

Specifications Packaging

Standard Reels

Specifications Type

Capillary Armor Stainless Steel Stripwound Hose - Type UI
