Capillary Armor Stainless Steel Stripwound Hose - Type UI | 1/2 in

Name: Capillary Armor Stainless Steel Stripwound Hose - Type UI | 1/2 in
Brand: Anamet Electrical, Inc.
SKU: IND-d530ea
Price: 299.99 USD
Availability: OutOfStock

SKU:IND-d530ea

Type UI Capillary Armor Stainless Steel Stripwound Hose - High crush & corrosion resistance, 1800ºF max temp, various material options

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

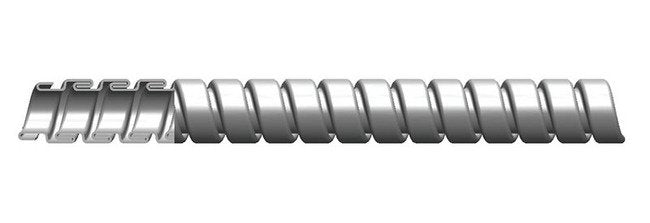

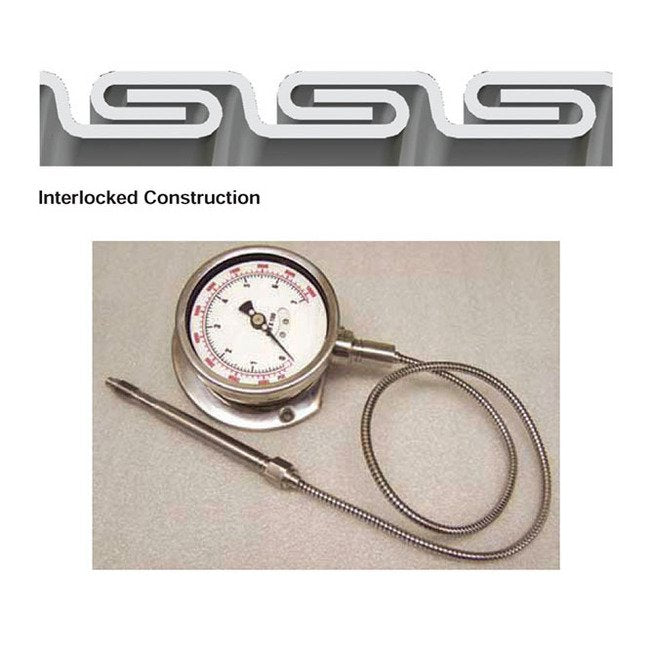

The Type UI Capillary Armor Stainless Steel Stripwound Hose features a continuously interlocked Type 304 stainless steel core, offering exceptional crush and corrosion resistance. This hose remains secure without unwinding, with options for PVC, Silicone, PTFE, or Thermoplastic Rubber jackets. Available in various materials including brass, galvanized steel, and aluminum. Ideal for high-temperature applications up to 1800ºF, this hose provides reliable protection for wiring, capillary tubing, and more.

Product Specifications

Application 0

Flexible with High Crush and Corrosion ResistanceProduct Will Not Spring Open or Unwind 1800ºF Maximum TemperatureFor applications with a max temperature of 1800ºFCasingsArmorProtection for wiring and capillary tubingControl cablesBar Dispenser casing

Specifications Approx Inside Bend Radius

2.5 in | 63.5 mm

Specifications Approx Weight Per 100 Ft

16.5 lbs | 7.48 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.495 to 0.515 in | 12.573 to 13.081 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

500 ft | 152.4 m

Specifications Nominal Size

1/2 in | 12.7 mm

Specifications Note

Other sizes available on special order.Available in brass, galvanized steel and aluminum.

Specifications Outside Diameter

0.610 to 0.630 in | 15.494 to 16.002 mm

Specifications Packaging

Standard Reels

Specifications Type

Capillary Armor Stainless Steel Stripwound Hose - Type UI | 1/2 in
