Capillary Armor Stainless Steel Stripwound Hose - Type UI

Name: Capillary Armor Stainless Steel Stripwound Hose - Type UI
Brand: Anamet Electrical, Inc.
SKU: IND-6814c0
Price: 125.99 USD
Availability: OutOfStock

SKU:IND-6814c0

Flexible, crush-resistant stainless steel stripwound hose with high-temperature tolerance. Compliant with RoHS and WEEE standards.

$125.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

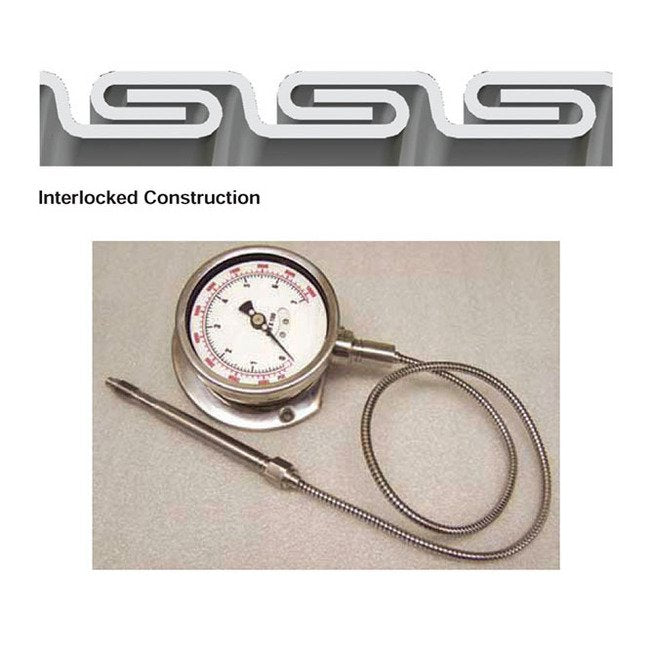

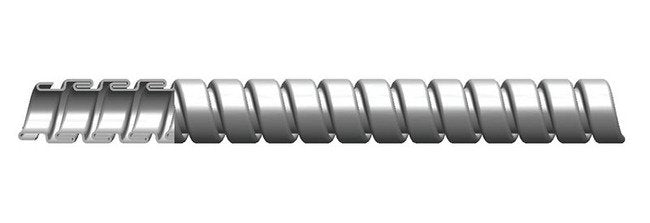

The Capillary Armor Stainless Steel Stripwound Hose in Type UI features a Type 304 stainless steel core for exceptional crush and corrosion resistance. Available in various sizes and materials including aluminum, brass, and galvanized steel. This hose is flexible, crush-resistant, and can withstand temperatures up to 1800ºF. Options for PVC, Silicone, PTFE, and Thermoplastic Rubber jackets. Compliant with RoHS and WEEE standards, suitable for industrial applications requiring high durability and protection.

Product Specifications

Application 0

Flexible with High Crush and Corrosion ResistanceProduct Will Not Spring Open or Unwind 1800ºF Maximum TemperatureFor applications with a max temperature of 1800ºFCasingsArmorProtection for wiring and capillary tubingControl cablesBar Dispenser casing

Specifications Approx Inside Bend Radius

1.5 in | 38.1 mm

Specifications Approx Weight Per 100 Ft

4.2 lbs | 1.91 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.160 to 0.175 in | 4.064 to 4.445 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

1000 ft | 304.8 m

Specifications Nominal Size

5/32 in | 4 mm

Specifications Note

Other sizes available on special order.Available in brass, galvanized steel and aluminum.

Specifications Outside Diameter

0.255 to 0.270 in | 6.477 to 6.858 mm

Specifications Packaging

Standard Reels

Specifications Type

Capillary Armor Stainless Steel Stripwound Hose - Type UI
