Capillary Armor Stainless Steel Stripwound Hose - Type UI

Name: Capillary Armor Stainless Steel Stripwound Hose - Type UI
Brand: Anamet Electrical, Inc.
SKU: IND-b42635
Price: 239.99 USD
Availability: OutOfStock

SKU:IND-b42635

Durable Capillary Armor Stainless Steel Stripwound Hose - Type UI, with exceptional crush resistance, customizable options, and RoHS WEEE compliance.

$239.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

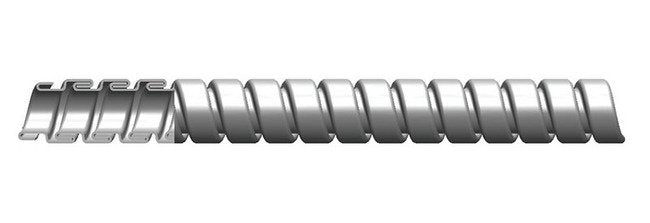

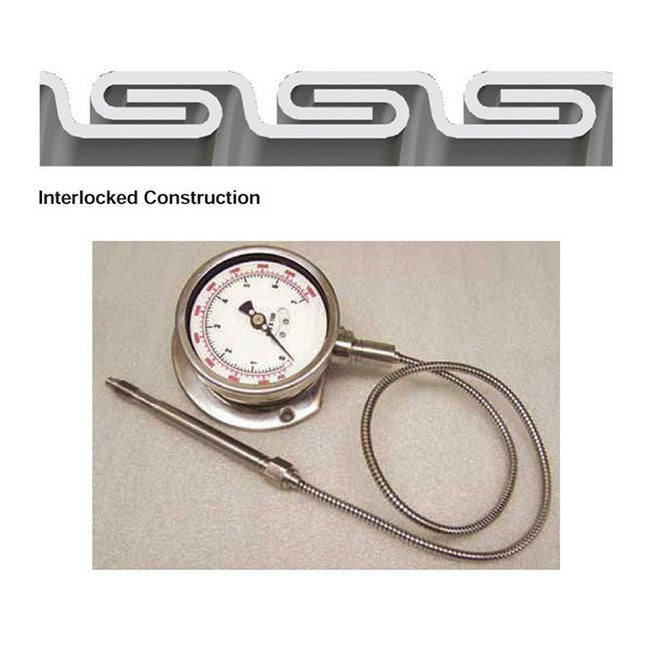

The Capillary Armor Stainless Steel Stripwound Hose in Type UI is engineered with a continuously interlocked Type 304 stainless steel core, offering exceptional crush and corrosion resistance. This industrial-grade metal hose will not spring open or unwind, ensuring durability and reliability in demanding environments. With options for extruded jackets in PVC, Silicone, PTFE, and Thermoplastic Rubber, and available in brass, galvanized steel, and aluminum, this hose is versatile and customizable to suit various applications. Certified RoHS WEEE compliant, this hose meets stringent standards for environmental safety and sustainability.

Product Specifications

Application 0

Flexible with High Crush and Corrosion ResistanceProduct Will Not Spring Open or Unwind 1800ºF Maximum TemperatureFor applications with a max temperature of 1800ºFCasingsArmorProtection for wiring and capillary tubingControl cablesBar Dispenser casing

Specifications Approx Inside Bend Radius

1.5 in | 38.1 mm

Specifications Approx Weight Per 100 Ft

6.6 lbs | 2.99 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.215 to 0.230 in | 5.461 to 5.842 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

1500 ft | 457.2 m

Specifications Nominal Size

7/32 in | 5.5 mm

Specifications Note

Other sizes available on special order.Available in brass, galvanized steel and aluminum.

Specifications Outside Diameter

0.310 to 0.325 in | 7.874 to 8.255 mm

Specifications Packaging

Standard Reels

Specifications Type

Capillary Armor Stainless Steel Stripwound Hose - Type UI
