Capillary Armor Stainless Steel Stripwound Hose - Type UI 3/8'' x 500 ft

Name: Capillary Armor Stainless Steel Stripwound Hose - Type UI 3/8'' x 500 ft
Brand: Anamet Electrical, Inc.
SKU: IND-e5c39c
Price: 749.99 USD
Availability: OutOfStock

SKU:IND-e5c39c

Durable Type UI Stainless Steel Hose for high crush & corrosion resistance, RoHS/WEEE compliant

$749.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

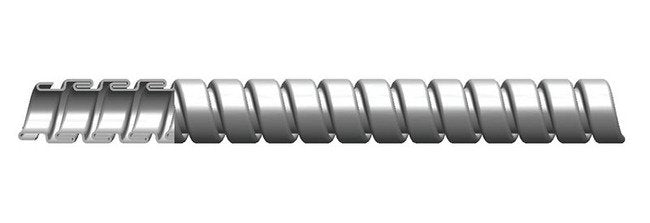

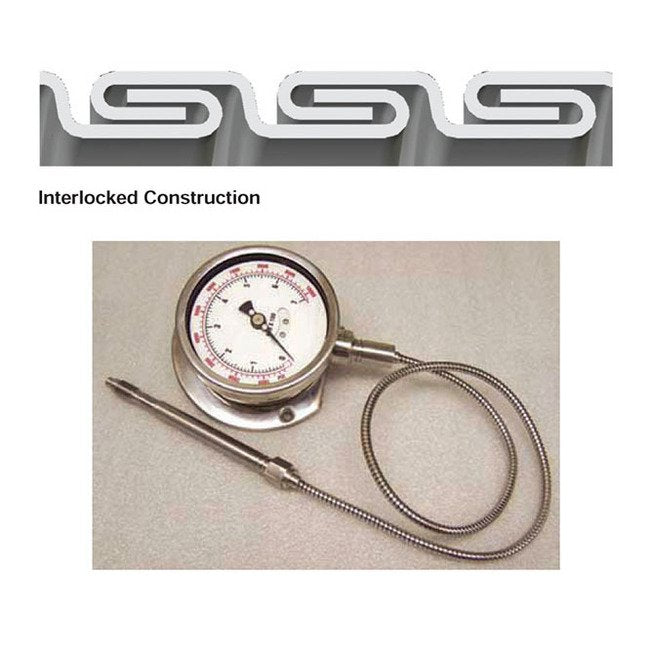

The Capillary Armor Stainless Steel Stripwound Hose in Type UI is designed with a continuously interlocked Type 304 stainless steel core, ensuring exceptional crush and corrosion resistance. This hose remains securely intact without springing open or unwinding, offering reliability in demanding industrial applications. Optionally available with PVC, Silicone, PTFE, or Thermoplastic Rubber jackets, and in brass, galvanized steel, or aluminum material. Certified RoHS and WEEE compliant, meeting industry standards for environmental responsibility.

Product Specifications

Application 0

Flexible with High Crush and Corrosion ResistanceProduct Will Not Spring Open or Unwind 1800ºF Maximum TemperatureFor applications with a max temperature of 1800ºFCasingsArmorProtection for wiring and capillary tubingControl cablesBar Dispenser casing

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

12 lbs | 5.44 kg

Specifications Available Material

Aluminum | Brass | Galvanized Steel | Stainless Steel

Specifications Core Material

Stainless Steel

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.370 to 0.390 in | 9.398 to 9.906 mm

Specifications Jacket Benefits

Zero Halogen

Specifications Jacket Material

None

Specifications Length

500 ft | 152.4 m

Specifications Nominal Size

3/8 in | 9.5 mm

Specifications Note

Other sizes available on special order.Available in brass, galvanized steel and aluminum.

Specifications Outside Diameter

0.485 to 0.505 in | 12.319 to 12.827 mm

Specifications Packaging

Standard Reels

Specifications Type

Capillary Armor Stainless Steel Stripwound Hose - Type UI 3/8'' x 500 ft
