Captive Panel Screw-Low Profile Knob PF32 - Metric

Name: Captive Panel Screw-Low Profile Knob PF32 - Metric
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-9b1069
Price: 14.99 USD
Availability: OutOfStock

SKU:PEM-9b1069

Secure panels effortlessly with the Captive Panel Screw-Low Profile Knob PF32 - Metric. High-quality materials, ANSI/ASME compliant, corrosion-resistant finish.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

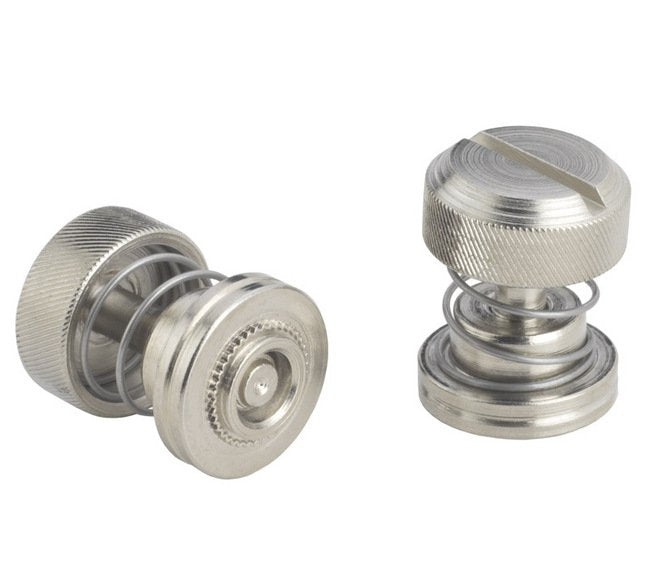

The Captive Panel Screw-Low Profile Knob PF32 offers a low-profile design that meets various functional and aesthetic requirements. Featuring a convenient large, slotted head for easy tool or finger operation, this screw is ideal for secure panel applications. With specifications meeting ANSI/ASME standards, this screw is crafted from premium materials for durability and strength. The bright nickel finish provides corrosion resistance, making it suitable for use in diverse environments.

Product Specifications

Specifications A Shank Max

1.48 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

5.48 mm

Specifications E 025

10.31 mm

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)

Specifications G 04

7.62 mm

Specifications Hole Size In Sheet 008

5.5 mm

Specifications H 013

5.13 mm

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Heat-Treated Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

6.60 mm

Specifications Min Sheet Thickness

1.50 mm

Specifications Screw Length Code

Specifications T1 Max

8.26 mm

Specifications T2 Nom

15.11 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M3 x 0.5

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PF32
