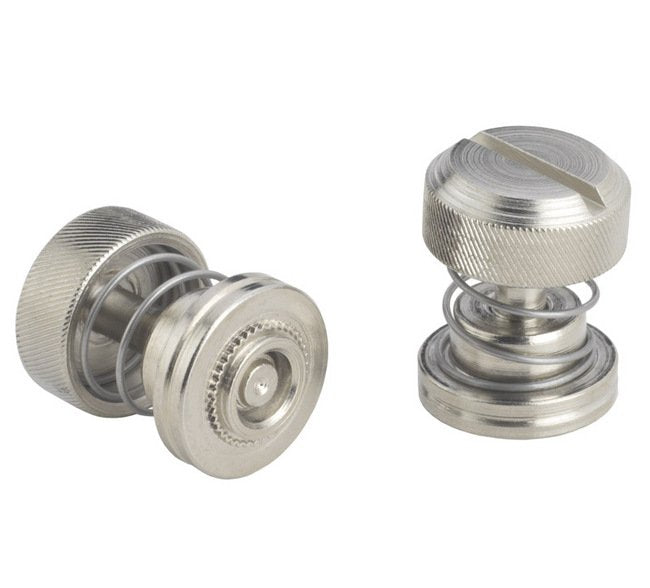

Captive Panel Screw-Low Profile Knob Spring-loaded PF30-PF32 Metric
Captive Panel Screw-Low Profile Knob Spring-loaded PF30-PF32 Metric
SKU:PEM-8a3ca5
Secure panels with ease using the low-profile Captive Panel Screw with convenient slotted head. Precision-engineered for durability and reliability.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Captive Panel Screw-Low Profile Knob Spring-loaded PF30-PF32 Metric
$12.99
Quantity: 1
Claim Your Seller Account
Captive Panel Screw-Low Profile Knob Spring-loaded PF30-PF32 Metric
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Captive Panel Screw with Low Profile Knob and Spring-loaded mechanism in Type PF30-PF32 offers a sleek design meeting both functional and aesthetic needs. Featuring a convenient large, slotted head for easy tool or finger operation, this screw ensures secure panel attachment. With specifications including M5 x 0.8 thread size, ANSI/ASME B1.13M thread specification, and material composition of Carbon Steel and 300 Series Stainless Steel, this fastener is engineered to meet high standards of durability and performance. Ideal for applications requiring precision and reliability.
Product Specifications
Specifications A Shank Max
1.48 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
7.98 mm
Specifications E 025
13.46 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 04
7.62 mm
Specifications Hole Size In Sheet 008
8 mm
Specifications H 013
5.59 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.38 mm
Specifications Min Sheet Thickness
1.50 mm
Specifications Optional Finish
Screw â Black NitrideRetainer â Black Nitride
Specifications Screw Length Code
30
Specifications T1 Max
8.51 mm
Specifications T2 Nom
15.37 mm
Specifications Thread Code
M5
Specifications Thread Size X Pitch
M5 x 0.8
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PF32
