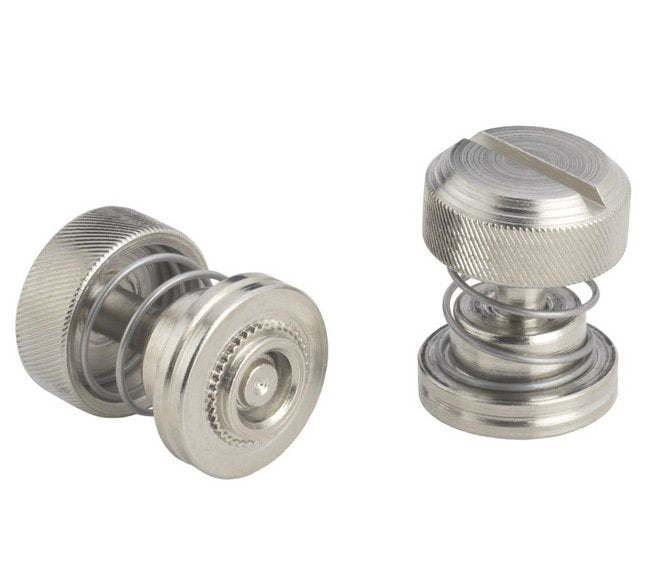

Captive Panel Screw with Low Profile Knob - PF30, PF31, PF32 Metric
Captive Panel Screw with Low Profile Knob - PF30, PF31, PF32 Metric
SKU:PEM-abd3b6
Achieve precision assembly with our Low Profile Knob Captive Panel Screw designed for easy operation and high durability.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Captive Panel Screw with Low Profile Knob - PF30, PF31, PF32 Metric
$12.99
Quantity: 1
Claim Your Seller Account
Captive Panel Screw with Low Profile Knob - PF30, PF31, PF32 Metric
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Captive Panel Screw features a low-profile design ideal for meeting functional and cosmetic needs. With a convenient large slotted head for easy tool or finger operation, this screw is crafted from high-quality materials, including carbon steel and 300 series stainless steel spring. It complies with ANSI/ASME B1.13M 6g thread specifications and is suitable for use in sheets with HRB 60 or less hardness. Enhance your assembly efficiency with this precision-engineered screw.
Product Specifications
Specifications A Shank Max
1.48 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
6.38 mm
Specifications E 025
11.89 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)
Specifications G 04
7.62 mm
Specifications Hole Size In Sheet 008
6.4 mm
Specifications H 013
5.26 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
7.37 mm
Specifications Min Sheet Thickness
1.50 mm
Specifications Optional Finish
Screw â Black NitrideRetainer â Black Nitride
Specifications Screw Length Code
30
Specifications T1 Max
8.38 mm
Specifications T2 Nom
15.24 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PF32
