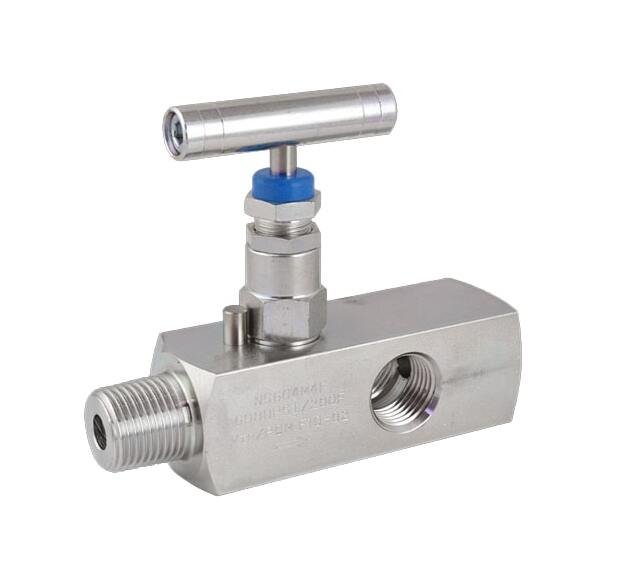

Carbon 1/2 Inch Multi-Port Needle Valve, 10000 psi
Carbon 1/2 Inch Multi-Port Needle Valve, 10000 psi
SKU:MUL-90dad1
Reliable Carbon 1/2 Inch Needle Valve for 10000 psi pressure, ASME B1.20.1 & NACE compliant
Regular price
$75.99
Regular price
Sale price
$75.99
Unit price
per
Initiate Order
Carbon 1/2 Inch Multi-Port Needle Valve, 10000 psi
$75.99
Quantity: 1
Claim Your Seller Account
Carbon 1/2 Inch Multi-Port Needle Valve, 10000 psi
$75.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon 1/2 Inch Multi-Port Needle Valve is a robust and reliable solution for precise flow control in high-pressure environments. With a working pressure of 10000 psi and hard seat material, this valve ensures durability and safety. Built to conform to American Society of Mechanical Engineers (ASME) B1.20.1 and National Association of Corrosion Engineers (NACE) standards, it meets the strict requirements of industrial applications. The male x female NPT thread type provides secure connections, making it ideal for various fluid handling systems.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1

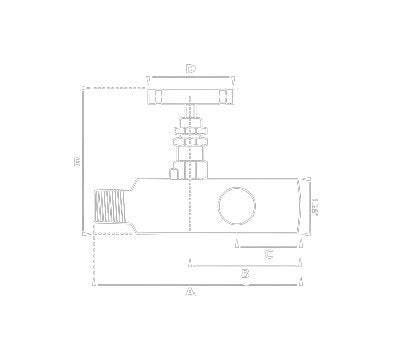

Technical Specs Dimension A
4.45 in
Technical Specs Dimension B
2.5 in
Technical Specs Dimension C
1.42 in
Technical Specs Dimension D
2.4 in
Technical Specs Dimension E
3.54 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Carbon
Technical Specs Seat Material
Hard Seat
Technical Specs Thread Size
1/2 in
Technical Specs Thread Type
Male x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
10000 psi
