Carbon Steel 1 Inch Wing Nut Quick Connect Hydraulic Socket
Carbon Steel 1 Inch Wing Nut Quick Connect Hydraulic Socket
SKU:COU-7069d7
Durable 1" Carbon Steel Wing Nut Hydraulic Socket for secure and leak-free connections in hydraulic systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Carbon Steel 1 Inch Wing Nut Quick Connect Hydraulic Socket
$29.99
Quantity: 1
Claim Your Seller Account
Carbon Steel 1 Inch Wing Nut Quick Connect Hydraulic Socket
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

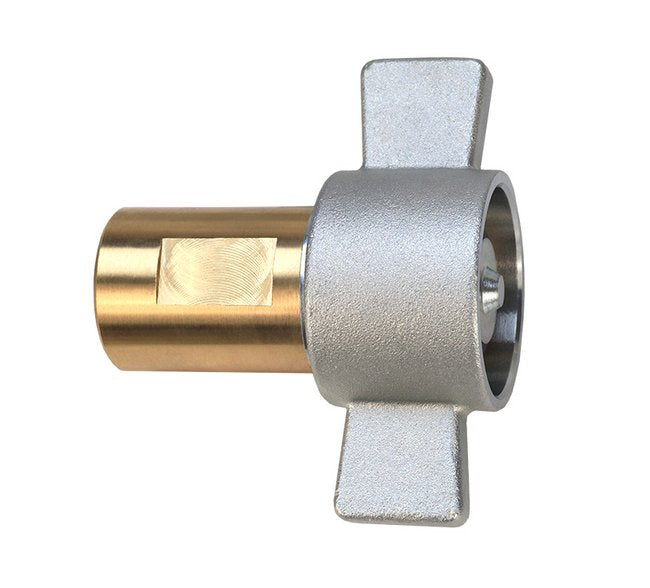

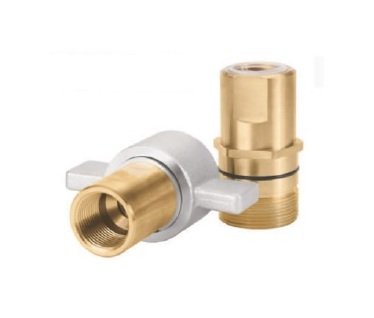

The Carbon Steel 1 Inch Wing Nut Quick Connect Hydraulic Socket is a robust and reliable coupling solution designed for hydraulic applications. Crafted from high-quality carbon steel with zinc plating and a Buna-N seal, this socket ensures durability and leak-free connections. With a working pressure of 2900 psi and a broad temperature range from -4 to +176 ºF, it excels in various environments. The wing nut design allows for quick and secure coupling, making it ideal for oil well equipment, sand spreaders, live bottom trailers, and more. Compliant with industry standards, this socket is interchangeable with Parker, Snap-Tite, Aeroquip, and Dixon products, offering versatility and performance.
Product Specifications
Applications
Seal Fast Wing Nut Quick Connects/Disconnects are low spill couplings designed to allow connection under pressure. They are recommended for oil well equipment, sand and salt spreaders, live bottom trailers, dump trailers, etc.
Specifications Body Size
1 in
Specifications Connection Type
Female | Socket
Specifications Coupling Type
Wing
Specifications End Size
1 in. Female NPT
Specifications Interchangeable With
Parker 6100Snap-Tite 78Aeroquip 5100Dixon W
Specifications Material
Brass | Carbon Steel
Specifications Overall Length
3.87 in
Specifications Seal Material
Buna-N (Nitrile)
Specifications Style
Hydraulic Sockets
Specifications Surface Treatment
Zinc Plating
Specifications Wing Nut Size
4.38 in
Specifications Working Pressure
2900 psi
Specifications Working Temperature Range
-4 to +176 ºF
Specifications Wrench Flat Size
1.43 in
