Carbon Steel Ball Shanks for Wire Rope - 1-3/8" Single & Double Shank

Name: Carbon Steel Ball Shanks for Wire Rope - 1-3/8" Single & Double Shank
Brand: Lexco Cable Manufacturing
SKU: MIL-75a31b
Price: 24.99 USD
Availability: OutOfStock

SKU:MIL-75a31b

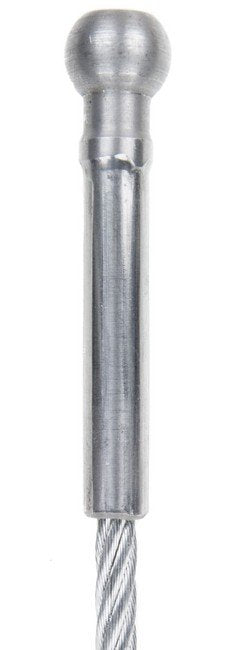

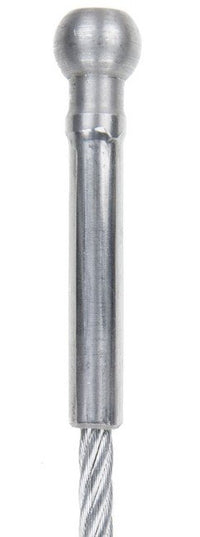

High-quality Carbon Steel Ball Shanks for 5/8" Wire Rope, 1-3/8" Ball Size, & 1" OD After Swage.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Crafted from durable carbon steel, these ball shanks are expertly designed for secure crimping to wire ropes or aircraft cables. With a Wire Rope Diameter of 5/8", Ball Size of 1-3/8", and a rugged OD After Swage of 1" for enhanced performance. The reliable Length After Swage of 4-1/4" and overall OAL After Swage of 5-1/4" ensure superior strength and stability. Each lightweight shank weighs 1.14 lbs, ideal for demanding military and industrial applications.

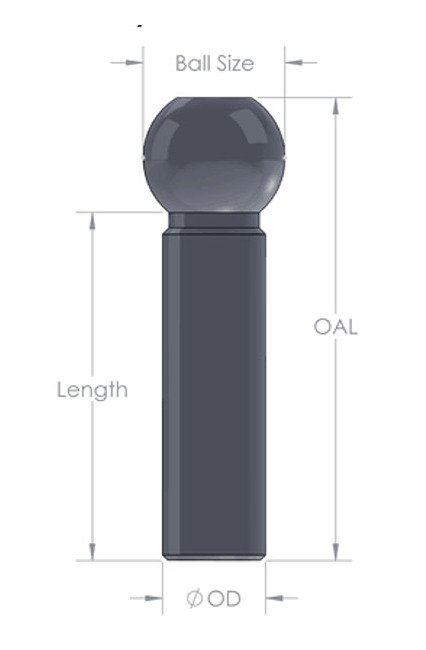

Product Specifications

Specifications Ball Size

1-3/8

Specifications Length After Swage

4-1/4 "

Specifications Oal After Swage

5-1/4 "

Specifications Od After Swage

1 "

Specifications Weight Lbs Each

1.14 lbs

Specifications Wire Rope Dia In

5/8

CAGE

0T9L4

NAICS

332510

PSC

4030

Carbon Steel Ball Shanks for Wire Rope - 1-3/8" Single & Double Shank
