Carbon Steel Ball Shanks MS20663, MS20664

Carbon Steel Ball Shanks MS20663, MS20664

SKU:MIL-21cee2

High-quality carbon steel ball shanks designed for secure crimping onto wire ropes or aircraft cables. Meets military specs MS20663 & MS20664.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Carbon Steel Ball Shanks MS20663, MS20664

Carbon Steel Ball Shanks MS20663, MS20664

$24.99

Quantity: 1

Claim Your Seller Account

Carbon Steel Ball Shanks MS20663, MS20664

Carbon Steel Ball Shanks MS20663, MS20664

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

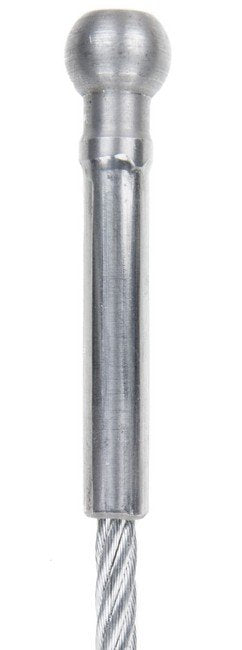

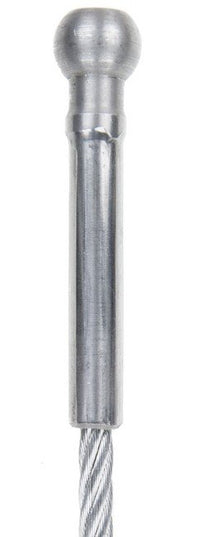

Crafted from high-quality carbon steel, these ball shanks are engineered for secure crimping onto wire ropes or aircraft cables. With a wire rope diameter of 9/16 inches and a durable 1-3/8 inch ball size, they provide reliable performance. Post swaging, the shank measures 1" in outer diameter, 4-1/4" in length, and has an overall length of 5-1/4". Each shank weighs approximately 1.21 lbs, meeting stringent military specifications MS20663 and MS20664, ensuring suitability for critical applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

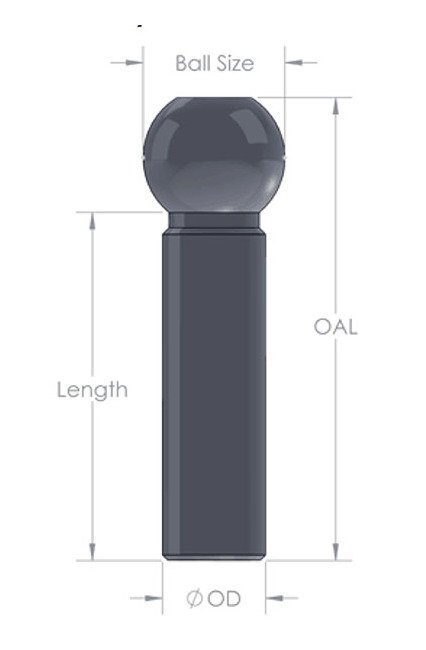

Product Specifications

Specifications Ball Size
1-3/8
Specifications Length After Swage
4-1/4 "
Specifications Oal After Swage
5-1/4 "
Specifications Od After Swage
1 "
Specifications Weight Lbs Each
1.21 lbs
Specifications Wire Rope Dia In
9/16
CAGE
0T9L4
NAICS
332510
PSC
4030
