Carbon Steel Bulkhead Connection, BSP Parallel, Equipped B4 Ring

Name: Carbon Steel Bulkhead Connection, BSP Parallel, Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-fba15c
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-fba15c

High-quality Carbon Steel Bulkhead Connection for secure and reliable installations. DIN 2353 compliant, designed for light-duty applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

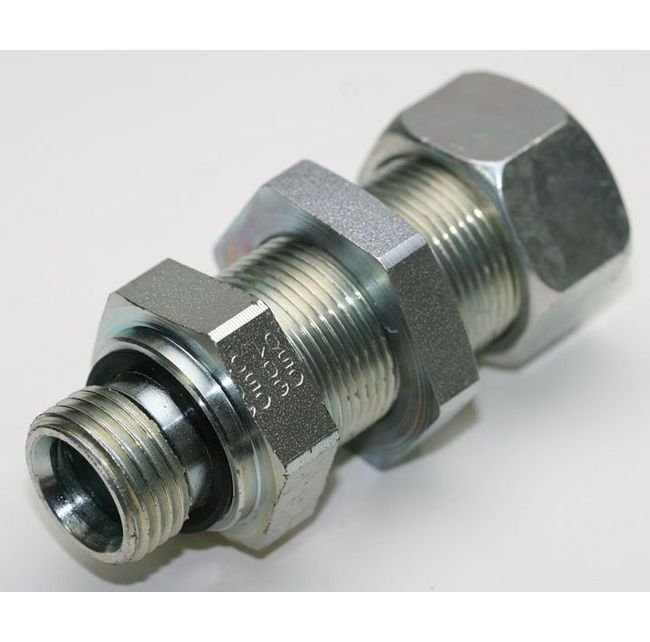

The Carbon Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Equipped B4 Ring is engineered for light-duty applications with a nominal operating pressure of 315 bar. Crafted from durable carbon steel, this fitting ensures reliable performance. With precise dimensions and meeting DIN 2353 standards, it offers a secure connection for a 10.0mm tube. The 16x1.5 m thread size and 1/4 G thread size provide versatile installation options. Trust in its 22mm CH1, 22mm CH2, and 19mm CH3 dimensions for a seamless fit.

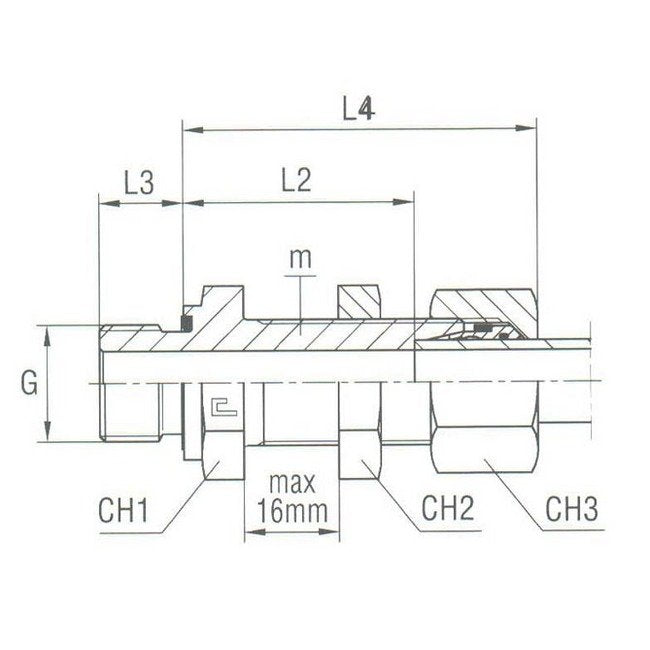

Product Specifications

Specifications Ch1

22 mm

Specifications Ch2

22 mm

Specifications Ch3

19 mm

Specifications G Thread Size

1/4

Specifications L2

36.0 mm

Specifications L3

12.0 mm

Specifications L4

51 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

16x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel
