Carbon Steel Bulkhead Connection BSP Parallel with Elastomer Seal - DIN 2353 Compliant

Name: Carbon Steel Bulkhead Connection BSP Parallel with Elastomer Seal - DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-6fccd4
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-6fccd4

Durable Carbon Steel Bulkhead Connection with BSP Parallel Thread. Ideal for light duty applications. DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

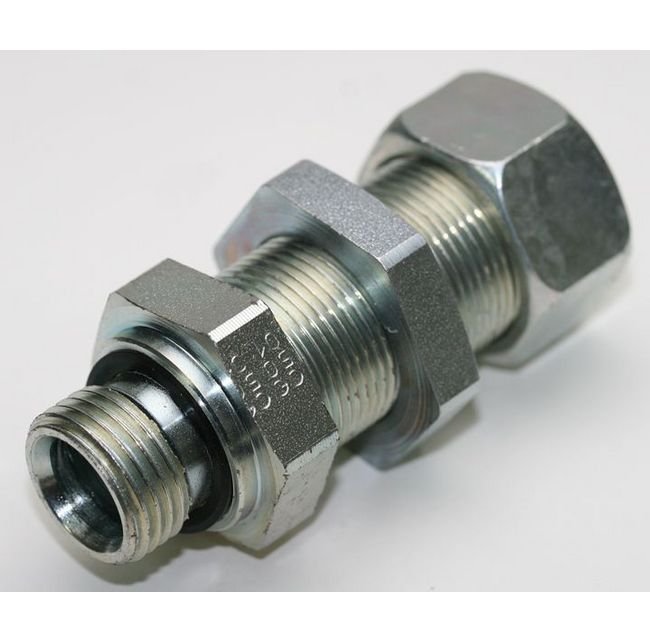

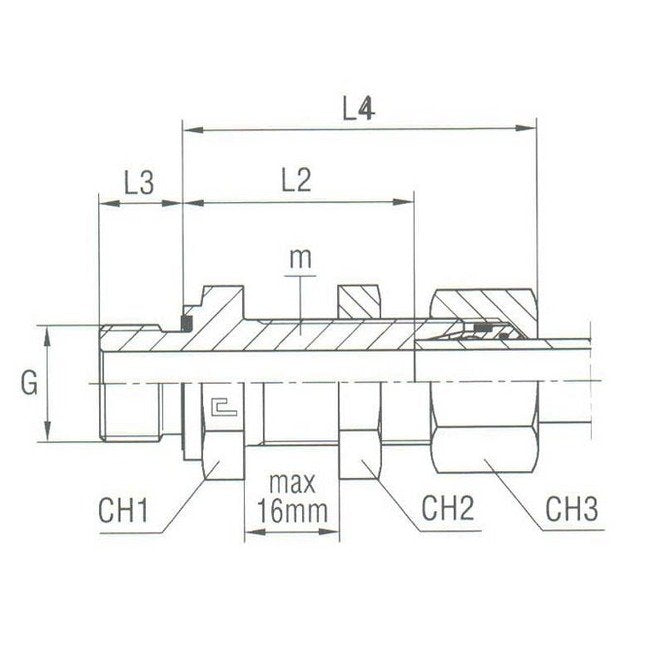

The Carbon Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Equipped B4 Ring offers a reliable solution for light duty applications with a nominal operating pressure of 315 bar. Crafted from durable carbon steel, this fitting features a tube diameter of 6.0 mm and meets DIN 2353 standards. With precise thread sizes, including M12x1.5 and G1/8, and dimensions like L2 32.5mm, L3 8.0mm, L4 47.5mm, CH1 17.0mm, CH2 17.0mm, and CH3 14mm, this fitting ensures secure and efficient connections.

Product Specifications

Specifications Ch1

17.0 mm

Specifications Ch2

17.0 mm

Specifications Ch3

14 mm

Specifications G Thread Size

1/8

Specifications L2

32.5 mm

Specifications L3

8.0 mm

Specifications L4

47.5 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

12x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel
