Carbon Steel Bulkhead Connection BSP Parallel with Elastomer Seal, DIN 2353 Compliant

Name: Carbon Steel Bulkhead Connection BSP Parallel with Elastomer Seal, DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-d98dc8
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-d98dc8

Durable Carbon Steel Bulkhead Connection with BSP Parallel Thread, DIN 2353 Compliant, Nominal 315 bar

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

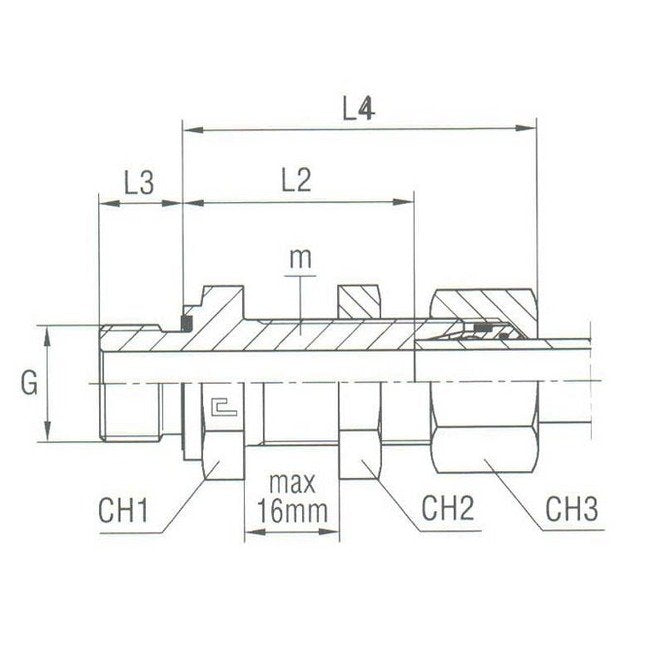

The Carbon Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Equipped B4 Ring is designed for optimal performance in light-duty applications with a nominal operating pressure of 315 bar. Made from durable carbon steel, this fitting ensures reliable tube connections with a precise L2 of 34.0 mm and L3 of 12.0 mm. With CH1, CH2, and CH3 dimensions meeting DIN 2353 standards, this fitting guarantees secure and leak-free installations.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications Ch3

17 mm

Specifications G Thread Size

1/4

Specifications L2

34.0 mm

Specifications L3

12.0 mm

Specifications L4

49 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Carbon Steel Bulkhead Connection BSP Parallel with Elastomer Seal, DIN 2353 Compliant
