Carbon Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
Carbon Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
SKU:FIT-755e07
High-quality Carbon Steel Bulkhead Connection for heavy-duty applications. Nominal pressure: 630 bar. DIN 2353 compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Carbon Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$34.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

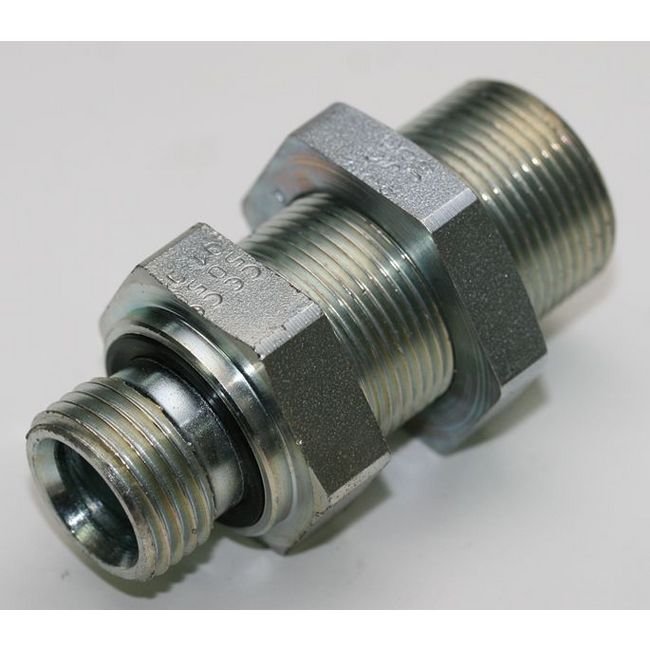

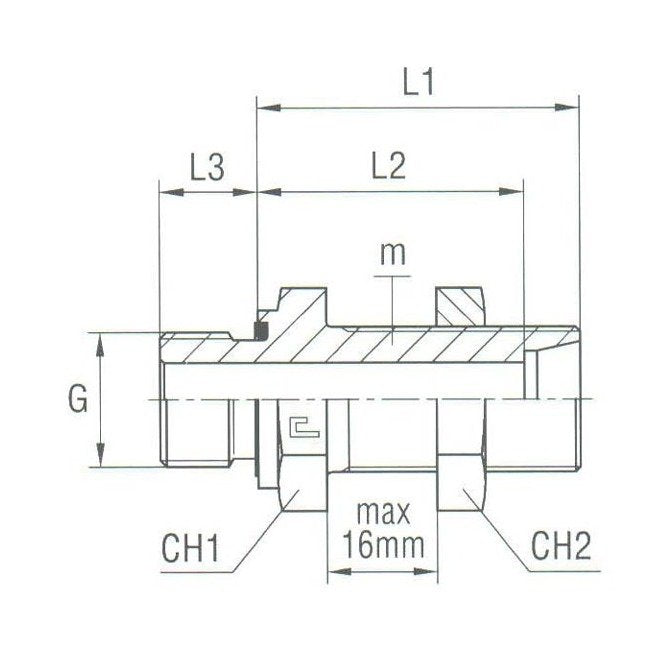

The Carbon Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel is designed for heavy-duty applications with a nominal operating pressure of 630 bar. Constructed from high-quality carbon steel, this fitting ensures durability and reliability. With a tube diameter of 6.0 mm and compliance with DIN 2353 standards, it offers a secure and leak-free connection. The unique design includes precise measurements for L1 (45.0 mm), L2 (38.0 mm), L3 (12.0 mm), CH1 (19.0 mm), and CH2 (19.0 mm), making it ideal for various industrial settings.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications G Thread Size
1/4
Specifications L1
45.0 mm
Specifications L2
38.0 mm
Specifications L3
12.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
