Carbon Steel Bulkhead Connection with Elastomer Seal Thread - DIN 2353 Compliant

Name: Carbon Steel Bulkhead Connection with Elastomer Seal Thread - DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-ba4f90
Price: 45.99 USD
Availability: OutOfStock

SKU:FIT-ba4f90

High-Pressure Carbon Steel Bulkhead Fitting for Reliable Seal - DIN 2353 Compliant

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

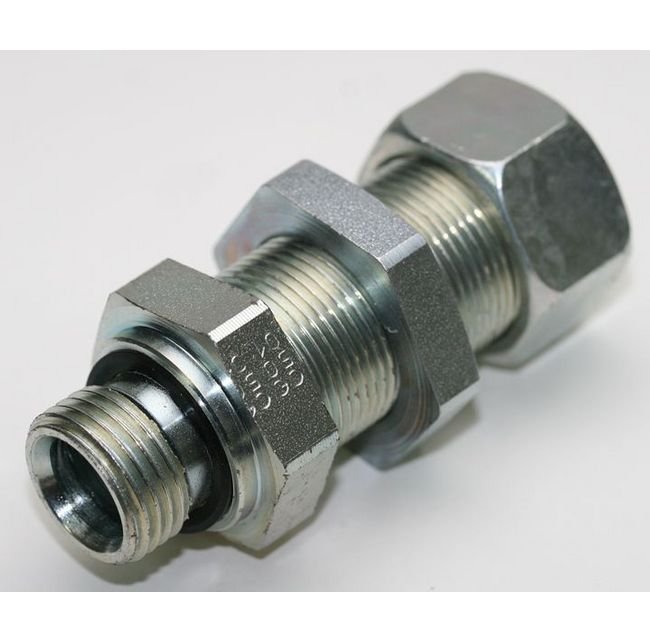

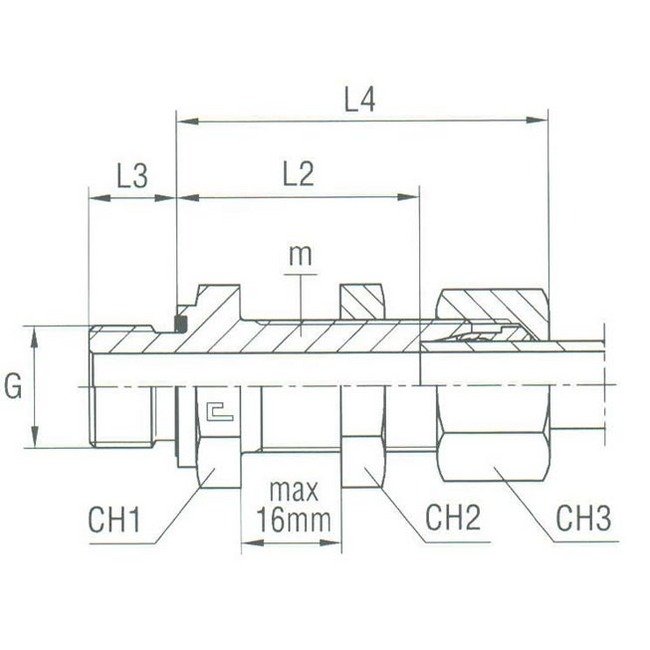

The Carbon Steel Bulkhead Connection with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring is a heavy-duty fitting designed to withstand pressures up to 630 bar. Constructed from durable carbon steel, this fitting ensures reliable performance. With a tube diameter of 12.0 mm and thread sizes of 20x1.5 and 3/8, it meets DIN 2353 standards for compression fittings. Its dimensions, including L2, L3, L4, CH1, CH2, and CH3, are precisely engineered for seamless installation. Suitable for various applications, this fitting provides a secure and leak-free connection.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

27 mm

Specifications Ch3

24 mm

Specifications G Thread Size

3/8

Specifications L2

42.5 mm

Specifications L3

12.0 mm

Specifications L4

59 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

20x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Carbon Steel Bulkhead Connection with Elastomer Seal Thread - DIN 2353 Compliant
