Carbon Steel Bulkhead Elbow - Body Only, DIN 2353 Compression Fitting
Carbon Steel Bulkhead Elbow - Body Only, DIN 2353 Compression Fitting
SKU:FIT-c4cba6
Durable Carbon Steel Bulkhead Elbow Body for secure connections. Size: 42.0mm. Pressure: 160 bar. DIN 2353 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Bulkhead Elbow - Body Only, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Bulkhead Elbow - Body Only, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

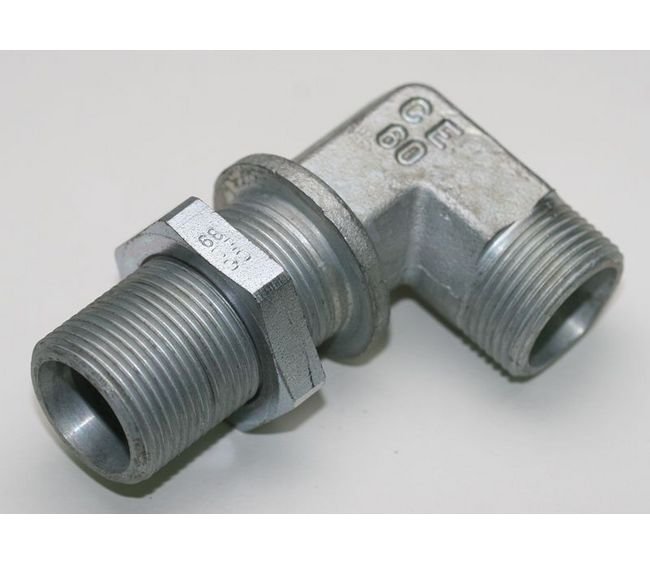

The Carbon Steel Bulkhead Elbow Body offers exceptional strength and durability for light-duty applications. With a tube diameter of 42.0mm and a thread size of 52x2, it operates at a nominal pressure of 160 bar. Meeting DIN 2353 standards, this fitting ensures reliable performance and secure connections, making it ideal for various industrial applications.

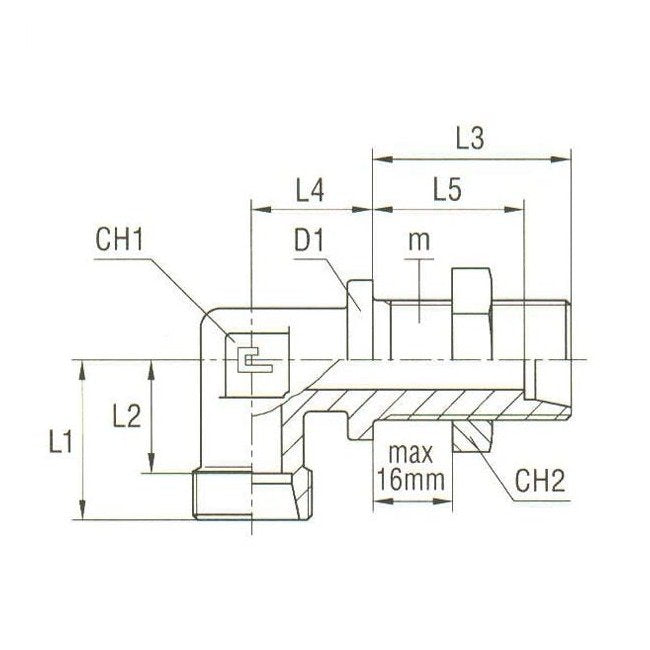

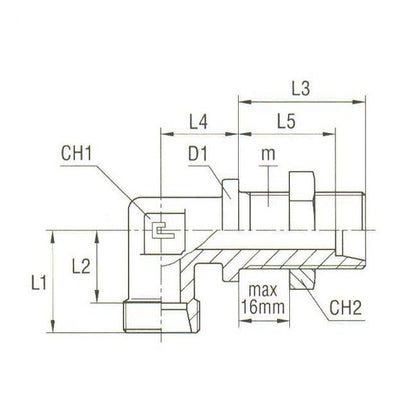

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
65 mm
Specifications D1
60 mm
Specifications L1
51.0 mm
Specifications L2
40.0 mm
Specifications L3
47 mm
Specifications L4
43.0 mm
Specifications L5
36 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
