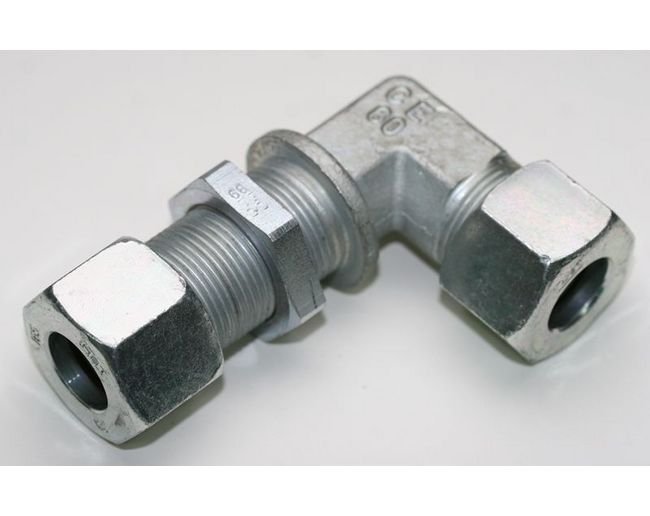

Carbon Steel Bulkhead Elbow with B4 Ring, DIN 2353 Compression Fitting
Carbon Steel Bulkhead Elbow with B4 Ring, DIN 2353 Compression Fitting
SKU:FIT-2bbff0
High-performance Carbon Steel Bulkhead Elbow with B4 Ring for reliable plumbing solutions.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Bulkhead Elbow with B4 Ring, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Bulkhead Elbow with B4 Ring, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Bulkhead Elbow with B4 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted from high-quality materials, this fitting features a tube diameter of 8.0 mm and meets DIN 2353 standards. With precise dimensions and a sturdy construction, it ensures reliable performance and seamless installation for various plumbing systems.

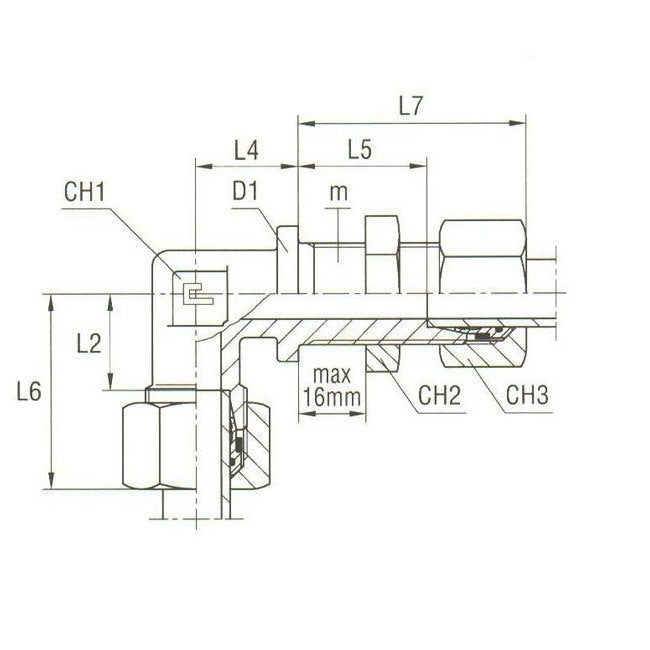

Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
19.0 mm
Specifications Ch3
17 mm
Specifications D1
19 mm
Specifications L2
14.0 mm
Specifications L4
17 mm
Specifications L5
27 mm
Specifications L6
21 mm
Specifications L7
42 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
