Carbon Steel Bulkhead Elbow with Equipped B3 Ring
Carbon Steel Bulkhead Elbow with Equipped B3 Ring
SKU:FIT-4afab2
Premium Carbon Steel Bulkhead Elbow with Equipped B3 Ring for light-duty applications. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Carbon Steel Bulkhead Elbow with Equipped B3 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Bulkhead Elbow with Equipped B3 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

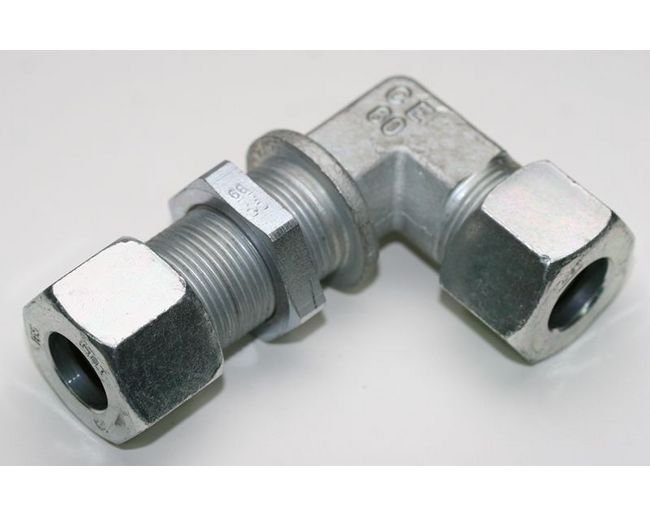

The Carbon Steel Bulkhead Elbow with Equipped B3 Ring is designed for light-duty applications, featuring a tube diameter of 42.0mm and a robust construction meeting DIN 2353 standards. With a nominal operating pressure of 160 bar, this fitting offers reliability and durability. The precision engineering ensures seamless integration and leak-free performance, making it ideal for various industrial settings.

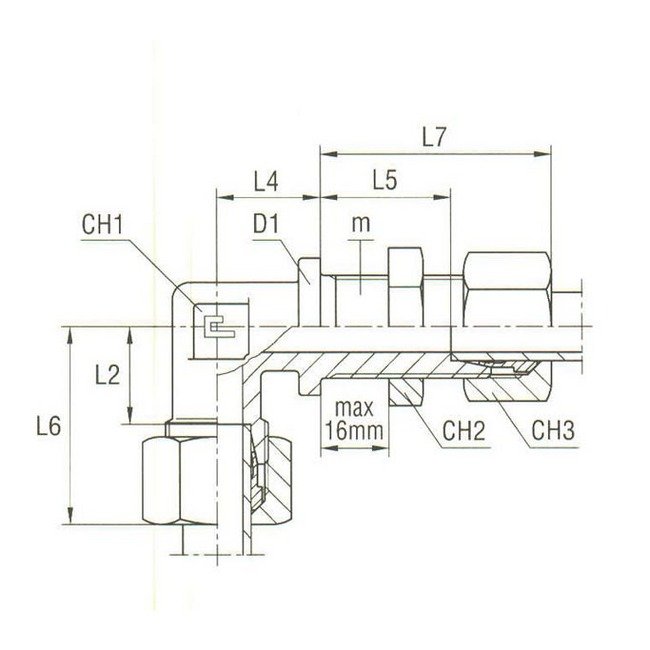

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
65 mm
Specifications Ch3
60 mm
Specifications D1
60 mm
Specifications L2
40.0 mm
Specifications L4
43.0 mm
Specifications L5
36 mm
Specifications L6
51 mm
Specifications L7
59 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
