Carbon Steel Bulkhead Union with DIN 2353 Compression - Equipped B4 Ring
Carbon Steel Bulkhead Union with DIN 2353 Compression - Equipped B4 Ring
SKU:FIT-3d299e
High-quality Carbon Steel Bulkhead Union for secure, leak-free connections in hydraulic systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Carbon Steel Bulkhead Union with DIN 2353 Compression - Equipped B4 Ring
$49.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Bulkhead Union with DIN 2353 Compression - Equipped B4 Ring
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Bulkhead Union with DIN 2353 Compression and Equipped B4 Ring is specially designed for light-duty applications, featuring a tube diameter of 42.0 mm and a thread size of 52x2. With a nominal operating pressure of 160 bar, this fitting offers reliability and durability. Compliant with DIN 2353 standards, it provides a secure and leak-free connection for various hydraulic systems, ensuring optimal performance in industrial settings.

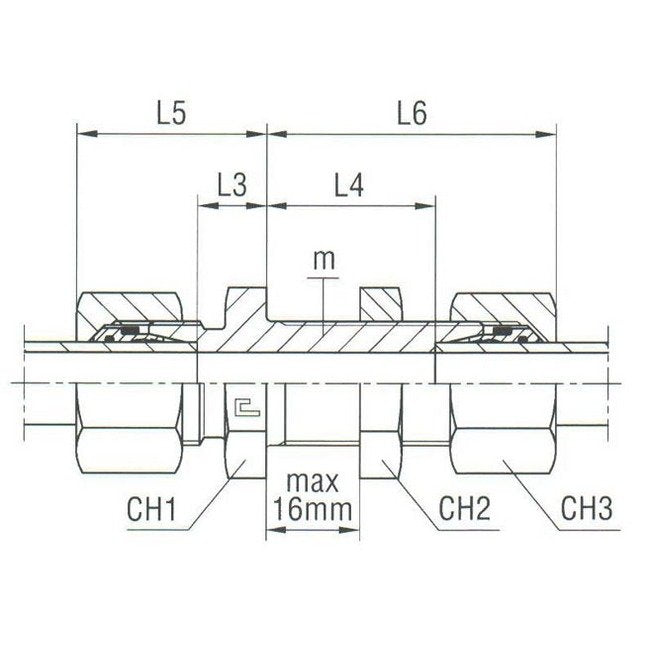

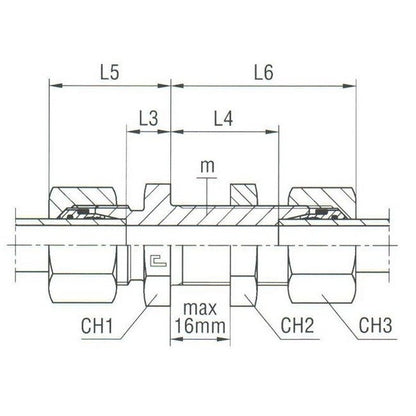

Product Specifications
Specifications Ch1
60 mm
Specifications Ch2
65 mm
Specifications Ch3
60 mm
Specifications L3
19.0 mm
Specifications L4
36 mm
Specifications L5
42 mm
Specifications L6
59 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
