Carbon Steel Equal Cross Compression Fitting - DIN2353, 12.0mm, 630 bar

Name: Carbon Steel Equal Cross Compression Fitting - DIN2353, 12.0mm, 630 bar
Brand: World Wide Metric, Inc.
SKU: FIT-fb7259
Price: 45.99 USD
Availability: OutOfStock

SKU:FIT-fb7259

Durable Carbon Steel Equal Cross Compression Fitting for heavy-duty applications. DIN 2353 compliant, 12.0mm, 630 bar.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

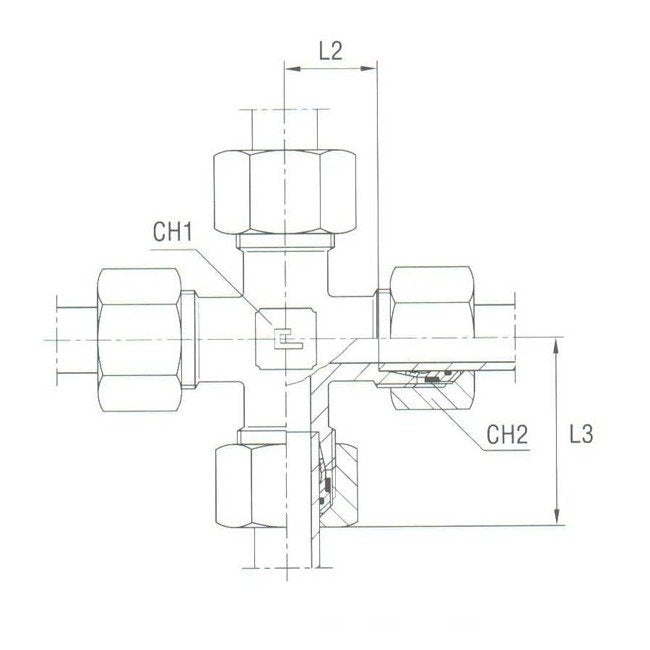

The Carbon Steel Equal Cross Compression Fitting is designed for heavy-duty industrial applications. Constructed with durable material, this fitting ensures reliable performance under high pressure conditions. Featuring a tube diameter of 12.0 mm and meeting DIN 2353 standards, it offers optimal functionality. With L2 dimension of 21.5mm, L3 of 38.0mm, CH1 of 17.0mm, and CH2 of 24mm, this fitting guarantees precision and efficiency in fluid systems.

Product Specifications

Specifications Ch1

17.0 mm

Specifications Ch2

24 mm

Specifications L2

21.5 mm

Specifications L3

38.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
