Carbon Steel Equal Elbow with B3 Ring, DIN 2353 Compression Fitting
Carbon Steel Equal Elbow with B3 Ring, DIN 2353 Compression Fitting
SKU:FIT-114716
Durable Equal Elbow - Equipped B3 Ring for precise flow control in industrial applications. DIN 2353 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Equal Elbow with B3 Ring, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Equal Elbow with B3 Ring, DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Equal Elbow - Equipped B3 Ring is designed for durability and precision. It features an extra light-duty pressure rating of 100 bar, making it ideal for industrial applications. With a tube diameter of 4.0 mm, this fitting ensures optimal flow control. Compliant with DIN 2353 standards, it guarantees reliable performance and easy integration into existing systems.

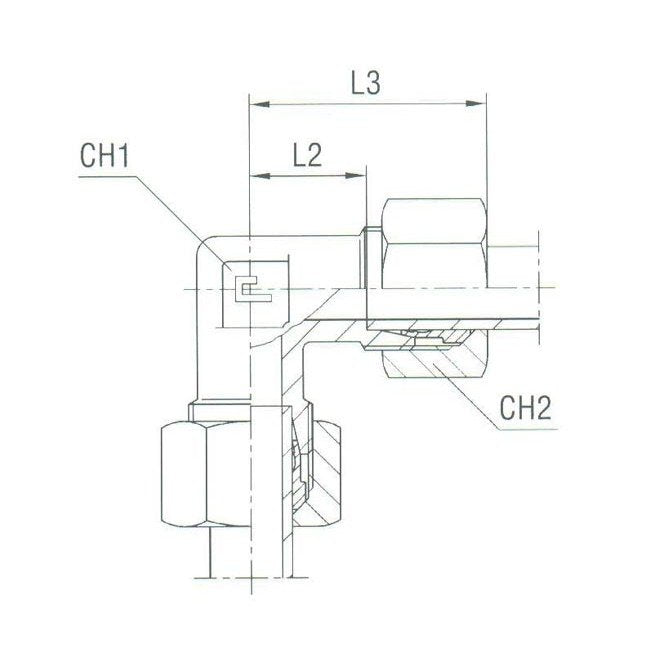

Product Specifications
Specifications Ch1
9 mm
Specifications Ch2
10 mm
Specifications L2
11.0 mm
Specifications L3
21.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Extra Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
4.0 mm
