Carbon Steel Equal Elbow with B4 Ring - DIN 2353 Compression Fitting
Carbon Steel Equal Elbow with B4 Ring - DIN 2353 Compression Fitting
SKU:FIT-6edfd0
High-quality Carbon Steel Equal Elbow with B4 Ring for secure light-duty compression fittings. DIN 2353 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Equal Elbow with B4 Ring - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Equal Elbow with B4 Ring - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Equal Elbow with B4 Ring is a reliable compression fitting designed for light-duty applications. With a tube diameter of 6.0mm and a nominal operating pressure of 315 bar, this fitting ensures secure connections. Meeting DIN 2353 standards, it provides durability and safety in fluid system installations, offering precise dimensions and quality construction to support efficient operations.

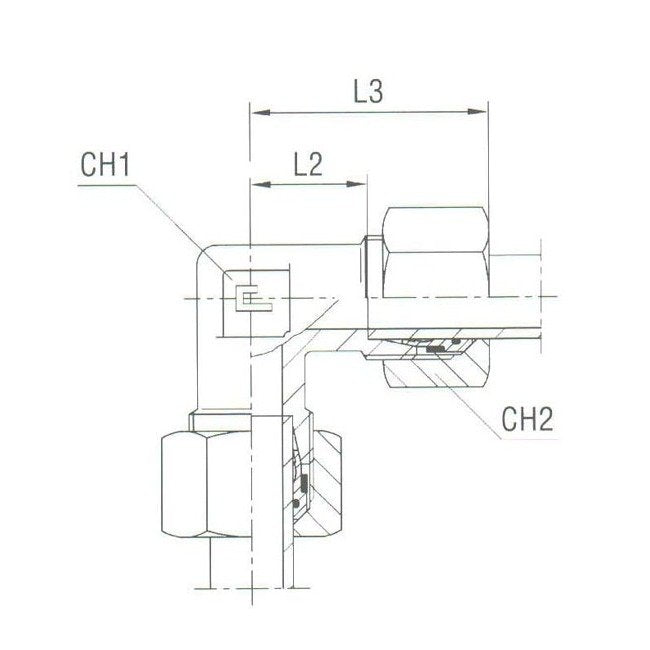

Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
14 mm
Specifications L2
12.0 mm
Specifications L3
27.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
