Carbon Steel Equal Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
Carbon Steel Equal Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
SKU:FIT-279048
Durable Carbon Steel Equal Elbow for light duty applications. Meets DIN 2353 standards. Reliable performance at 315 bar.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Equal Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Equal Elbow with Equipped B3 Ring - DIN 2353 Compression Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Equal Elbow with Equipped B3 Ring is a durable fitting designed for light duty applications. With a tube diameter of 12.0 mm and a nominal operating pressure of 315 bar, it offers optimal performance. This fitting meets DIN 2353 standards and is crafted for precision and reliability, making it ideal for various industrial settings.

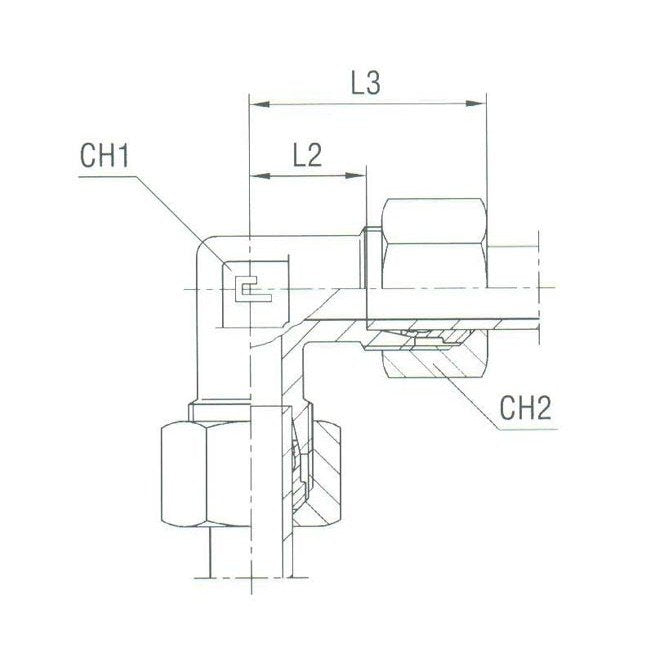

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
22 mm
Specifications L2
17.0 mm
Specifications L3
32.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
