Carbon Steel Equal Tee - 4.0mm DIN 2353 Compression Fitting

Name: Carbon Steel Equal Tee - 4.0mm DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-94b712
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-94b712

High-quality Carbon Steel Equal Tee for 4.0mm tubes, DIN 2353 compliant. Ideal for plumbing and hydraulic systems.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

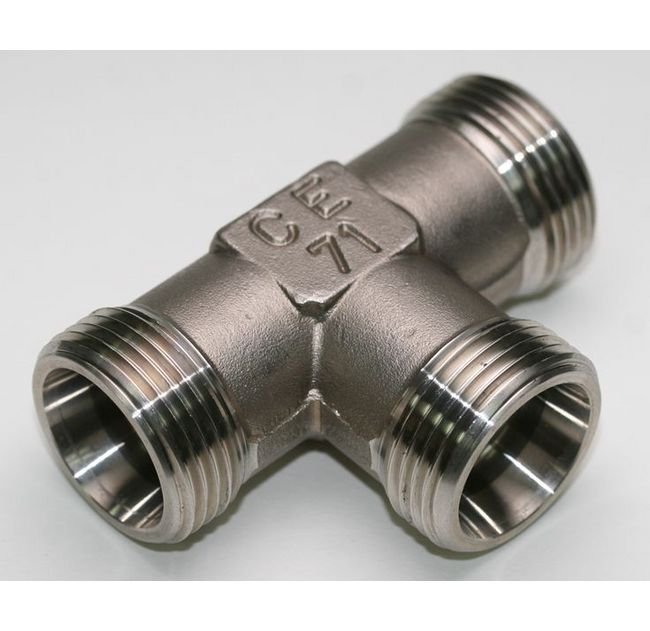

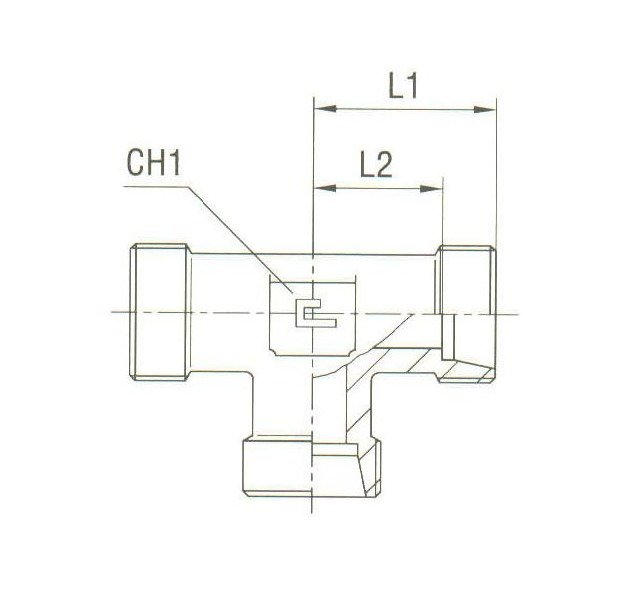

The Carbon Steel Equal Tee - Body Only is designed for extra light duty applications with a tube diameter of 4.0mm and a nominal operating pressure of 100 bar. Compliant with DIN 2353 standards, it features precise measurements of L1: 15mm, L2: 11.0mm, and CH1: 9mm, ensuring optimal performance and durability. Ideal for various plumbing and hydraulic systems, this fitting guarantees reliability and ease of installation, making it a top choice for both consumer and institutional buyers.

Product Specifications

Specifications Ch1

9 mm

Specifications L1

15 mm

Specifications L2

11.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Extra Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

4.0 mm

Carbon Steel Equal Tee - 4.0mm DIN 2353 Compression Fitting
