Carbon Steel Female x Female Round-Handle Mini Needle Valve
Carbon Steel Female x Female Round-Handle Mini Needle Valve
SKU:MIN-b78b9b
Precision-engineered Carbon Steel Female x Female Mini Needle Valve for industrial applications. Pressure rating: 6000 psi.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Carbon Steel Female x Female Round-Handle Mini Needle Valve is a precision-engineered valve designed for optimal performance in industrial applications. With a pressure rating of 6000 psi and a compact size of 1/4 x 1/4 inches, this valve is crafted from high-quality carbon steel, ensuring durability and longevity. The PTFE stem packing with Fluorocarbon (FKM) O-Ring guarantees a secure seal, while the POM/Acetal soft seat enhances operational efficiency. Despite its miniature design, this needle valve offers excellent control over fluid flow, making it ideal for various fluid control systems. Please note that it is recommended for applications below 4,000 psi to ensure the ease of operation with the round handle.
Product Specifications
Technical Specs Body Material
Carbon Steel
Technical Specs Bonnet Material
Carbon Steel

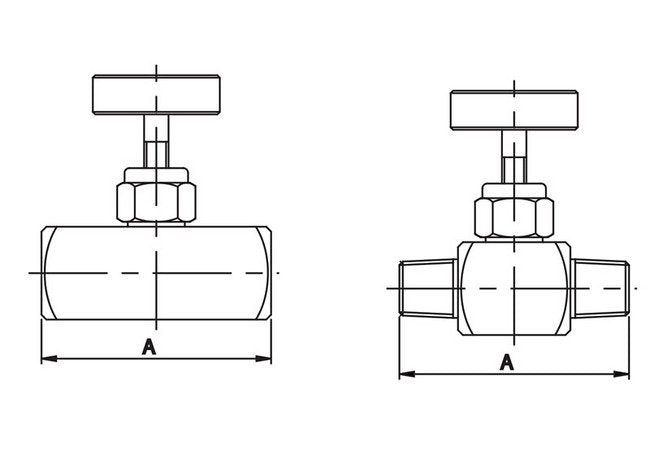

Technical Specs Dimension A
1.85 in
Technical Specs Dimension B
0.47 in
Technical Specs Dimension C
1.97 in
Technical Specs Dimension D
1.02 in
Technical Specs Dimension E
0.75 in
Technical Specs Handle Material
Carbon Steel
Technical Specs Material
Carbon Steel
Technical Specs Pressure Rating
6000 psi
Technical Specs Size
1/4 x 1/4 in
Technical Specs Stem Material
304 Stainless
Technical Specs Thread Type
Female x Female
