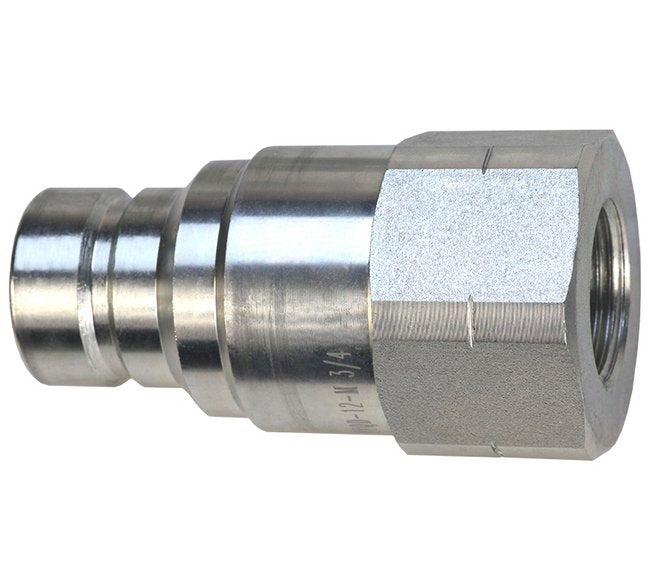

Carbon Steel Flat Face Hydraulic Plug - 2.16in Overall Length
Carbon Steel Flat Face Hydraulic Plug - 2.16in Overall Length
SKU:COU-e4ad3e
High-quality Carbon Steel Hydraulic Plug with ISO 16208 compliance, no-drip valve design, 3625 psi working pressure, ideal for safe and clean hydraulic connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Carbon Steel Flat Face Hydraulic Plug - 2.16in Overall Length
$29.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Flat Face Hydraulic Plug - 2.16in Overall Length
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your hydraulic connection needs with precision using this Carbon Steel Flat Face Quick Connect Hydraulic Plug. Designed to meet ISO 16208 standards, this Seal Fast plug features a no-drip valve design for minimal fluid loss, ensuring a safe and clean work environment. With an overall length of 2.16 inches, a working pressure of 3625 psi, and a wide working temperature range from -4 to +176 ºF, this plug is durable and versatile, suitable for various applications.
Product Specifications
Applications

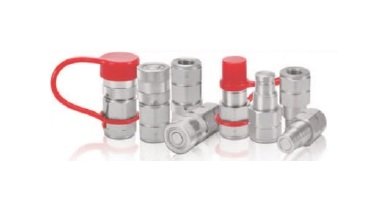

Seal Fast Flat Face (Flush Face) Quick Connects/Disconnects are made according to ISO 16028 interchange specifications. They have a no-drip valve design to minimize fluid loss allowing for a safer and cleaner environment. These are also ideal where dirt is frequently exposed to the connection points. The female features a sleeve lock safety device to help reduce the chance of accidental disconnect.
Specifications Approvals
International Organization for Standardization (ISO 16208)
Specifications Body Size
3/4 in
Specifications End Size
3/4 in. Female NPT
Specifications Hex Size
34 mm
Specifications Interchangeable With
Parker FEMSnap-Tite 74Aeroquip FD89Stucchi A
Specifications Material
Carbon Steel
Specifications Overall Diameter
37 mm | 1.45 in
Specifications Overall Length
55 mm | 2.16 in
Specifications Shape
Female
Specifications Style
Hydraulic Plugs
Specifications Working Pressure
3625 psi
Specifications Working Temperature Range
-4 to +176 ºF
