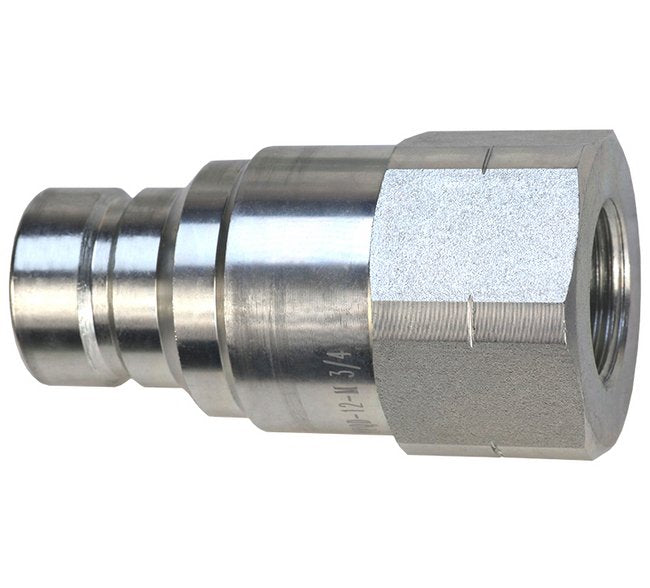

Carbon Steel Flat Face Quick Connect Hydraulic Plug - 1.53 in Overall Length
Carbon Steel Flat Face Quick Connect Hydraulic Plug - 1.53 in Overall Length
SKU:COU-fea316
Premium Carbon Steel Flat Face Hydraulic Plug meeting ISO 16208 standards, featuring no-drip valve and enhanced safety for optimal performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Flat Face Quick Connect Hydraulic Plug - 1.53 in Overall Length
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Flat Face Quick Connect Hydraulic Plug - 1.53 in Overall Length
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Flat Face Quick Connect Hydraulic Plug offers top-tier performance with Seal Fast's renowned quality. Constructed from durable carbon steel, this plug is designed to meet ISO 16208 and boasts a no-drip valve for minimal fluid loss. Operating at a working pressure of 4350 psi and a temperature range of -4 to +176 ºF, it ensures reliability in diverse conditions. The female features a sleeve lock safety device for enhanced security, making it ideal for applications where cleanliness and safety are paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications

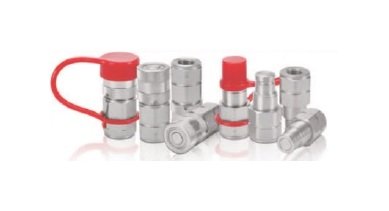

Seal Fast Flat Face (Flush Face) Quick Connects/Disconnects are made according to ISO 16028 interchange specifications. They have a no-drip valve design to minimize fluid loss allowing for a safer and cleaner environment. These are also ideal where dirt is frequently exposed to the connection points. The female features a sleeve lock safety device to help reduce the chance of accidental disconnect.
Specifications Approvals
International Organization for Standardization (ISO 16208)
Specifications Body Size
3/8 in
Specifications End Size
3/8 in. Female NPT
Specifications Hex Size
22 mm
Specifications Interchangeable With
Parker FEMSnap-Tite 74Aeroquip FD89Stucchi A
Specifications Material
Carbon Steel
Specifications Overall Diameter
26 mm | 1.02 in
Specifications Overall Length
39 mm | 1.53 in
Specifications Shape
Female
Specifications Style
Hydraulic Plugs
Specifications Working Pressure
4350 psi
Specifications Working Temperature Range
-4 to +176 ºF
