Carbon Steel Flat Face Quick Connect Hydraulic Plug - 1.73in Length
Carbon Steel Flat Face Quick Connect Hydraulic Plug - 1.73in Length
SKU:COU-066c1b
Durable carbon steel hydraulic plug meeting ISO 16208 standards. No-drip valve design for safety & efficiency.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Carbon Steel Flat Face Quick Connect Hydraulic Plug - 1.73in Length
$29.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Flat Face Quick Connect Hydraulic Plug - 1.73in Length
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

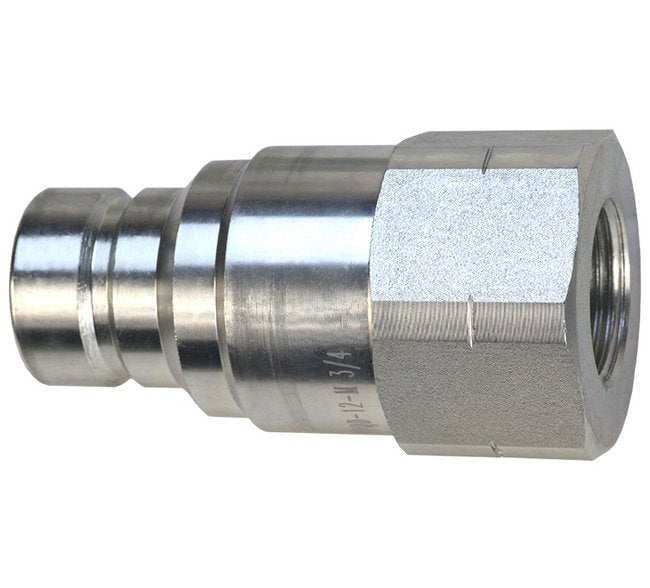

The Seal Fast Carbon Steel Flat Face Quick Connect Hydraulic Plug is a durable solution meeting ISO 16208 standards. With a working pressure of 4350 psi and a wide working temperature range from -4 to +176 ºF, this plug ensures reliable performance in demanding hydraulic applications. Its no-drip valve design minimizes fluid loss, promoting a cleaner and safer work environment. Equipped with a sleeve lock safety device, accidental disconnects are reduced, making it ideal for industrial settings where safety is paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications

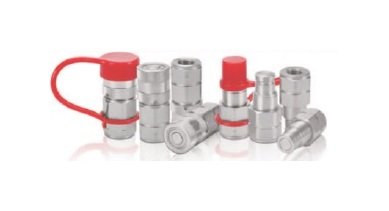

Seal Fast Flat Face (Flush Face) Quick Connects/Disconnects are made according to ISO 16028 interchange specifications. They have a no-drip valve design to minimize fluid loss allowing for a safer and cleaner environment. These are also ideal where dirt is frequently exposed to the connection points. The female features a sleeve lock safety device to help reduce the chance of accidental disconnect.
Specifications Approvals
International Organization for Standardization (ISO 16208)
Specifications Body Size
1/2 in
Specifications End Size
1/2 in. Female NPT
Specifications Hex Size
27 mm
Specifications Interchangeable With
Parker FEMSnap-Tite 74Aeroquip FD89Stucchi A
Specifications Material
Carbon Steel
Specifications Overall Diameter
32 mm | 1.25 in
Specifications Overall Length
44 mm | 1.73 in
Specifications Shape
Female
Specifications Style
Hydraulic Plugs
Specifications Working Pressure
4350 psi
Specifications Working Temperature Range
-4 to +176 ºF
