Carbon Steel Flat Face Quick Connect Hydraulic Socket - 1.85in Overall Length
Carbon Steel Flat Face Quick Connect Hydraulic Socket - 1.85in Overall Length
SKU:COU-5910b4
Reliable Carbon Steel Flat Face Quick Connect Hydraulic Socket meeting ISO 16208 standards for high-pressure applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Flat Face Quick Connect Hydraulic Socket - 1.85in Overall Length
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Flat Face Quick Connect Hydraulic Socket - 1.85in Overall Length
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

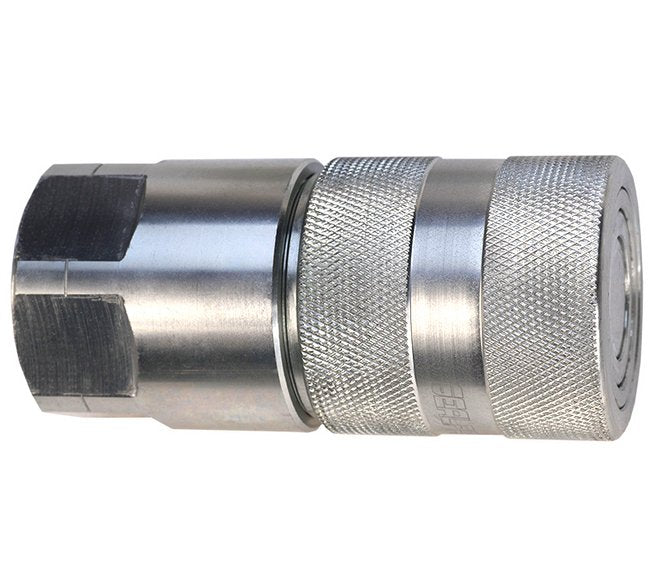

The Carbon Steel Flat Face Quick Connect Hydraulic Socket in 1.85-inch overall length is a robust coupling solution designed to meet ISO 16208 standards. Crafted from durable carbon steel with Buna-N seal material and zinc plating, this socket ensures reliable performance under high pressure (up to 5075 psi) and wide temperature ranges (-4 to +176 ºF). The no-drip valve design and sleeve lock safety feature enhance safety, cleanliness, and ease of use, making it ideal for environments where dirt exposure is common.
Product Specifications
Applications
Seal Fast Flat Face (Flush Face) Quick Connects/Disconnects are made according to ISO 16028 interchange specifications. They have a no-drip valve design to minimize fluid loss allowing for a safer and cleaner environment. These are also ideal where dirt is frequently exposed to the connection points. The female features a sleeve lock safety device to help reduce the chance of accidental disconnect.
Specifications Approvals
International Organization for Standardization (ISO 16208)
Specifications Body Size
1/4 in
Specifications Connection Type
Female | Socket
Specifications End Size
1/4 in. Female NPT
Specifications Hex Size
19 mm
Specifications Interchangeable With
Parker FEMSnap-Tite 74Aeroquip FD89Stucchi A
Specifications Material
Carbon Steel
Specifications Overall Diameter
25 mm | 0.98 in
Specifications Overall Length
47 mm | 1.85 in
Specifications Seal Material
Buna-N (Nitrile)
Specifications Style
Hydraulic Sockets
Specifications Surface Treatment
Zinc Plating
Specifications Working Pressure
5075 psi
Specifications Working Temperature Range
-4 to +176 ºF
