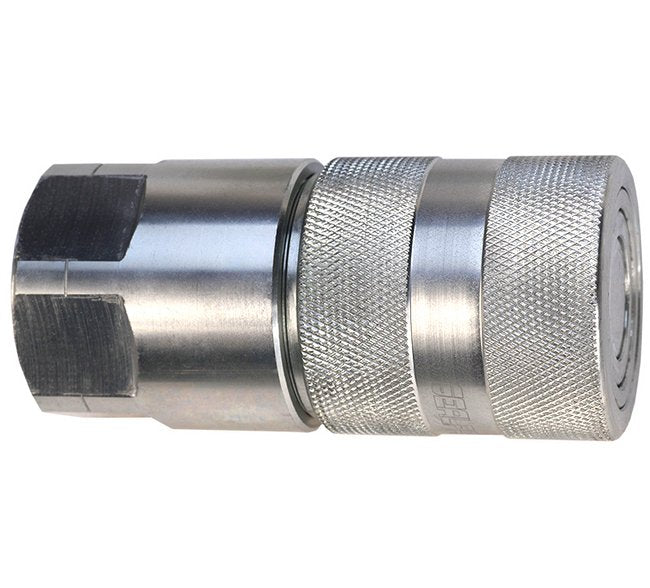

Carbon Steel Flat Face Quick Connect Hydraulic Socket - 2.24 in
Carbon Steel Flat Face Quick Connect Hydraulic Socket - 2.24 in
SKU:COU-2239b0
Enhance hydraulic systems with the ISO 16208-compliant Carbon Steel Flat Face Quick Connect Socket (2.24 in) for reliable, leak-free performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Carbon Steel Flat Face Quick Connect Hydraulic Socket - 2.24 in
$39.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Flat Face Quick Connect Hydraulic Socket - 2.24 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your hydraulic system with the Carbon Steel Flat Face Quick Connect Hydraulic Socket featuring a durable Carbon Steel construction, Buna-N seal, zinc plating, and an overall length of 2.24 inches. This socket is designed to meet ISO 16208 standards, ensuring high-performance, reliability, and safety in various hydraulic applications. With a working pressure of 4350 psi and a wide working temperature range of -4 to +176 ºF, this socket provides efficient fluid transfer while maintaining a clean, leak-free environment. Ideal for institutions seeking quality, compliance, and durability.
Product Specifications
Applications

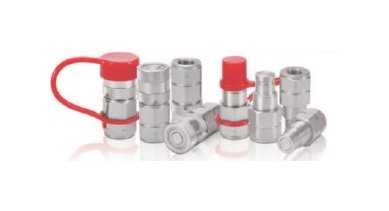

Seal Fast Flat Face (Flush Face) Quick Connects/Disconnects are made according to ISO 16028 interchange specifications. They have a no-drip valve design to minimize fluid loss allowing for a safer and cleaner environment. These are also ideal where dirt is frequently exposed to the connection points. The female features a sleeve lock safety device to help reduce the chance of accidental disconnect.
Specifications Approvals
International Organization for Standardization (ISO 16208)
Specifications Body Size
3/8 in
Specifications Connection Type
Female | Socket
Specifications End Size
3/8 in. Female NPT
Specifications Hex Size
22 mm
Specifications Interchangeable With
Parker FEMSnap-Tite 74Aeroquip FD89Stucchi A
Specifications Material
Carbon Steel
Specifications Overall Diameter
31 mm | 1.22 in
Specifications Overall Length
57 mm | 2.24 in
Specifications Seal Material
Buna-N (Nitrile)
Specifications Style
Hydraulic Sockets
Specifications Surface Treatment
Zinc Plating
Specifications Working Pressure
4350 psi
Specifications Working Temperature Range
-4 to +176 ºF
