Carbon Steel Flat Face Quick Connect Hydraulic Socket, 4.60" Overall Length
Carbon Steel Flat Face Quick Connect Hydraulic Socket, 4.60" Overall Length
SKU:COU-23daf2
Reliable Carbon Steel Flat Face Quick Connect Hydraulic Socket. ISO 16208 compliant for industrial use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Carbon Steel Flat Face Quick Connect Hydraulic Socket, 4.60" Overall Length
$49.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Flat Face Quick Connect Hydraulic Socket, 4.60" Overall Length
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

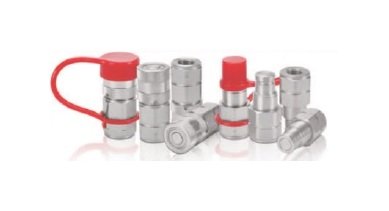

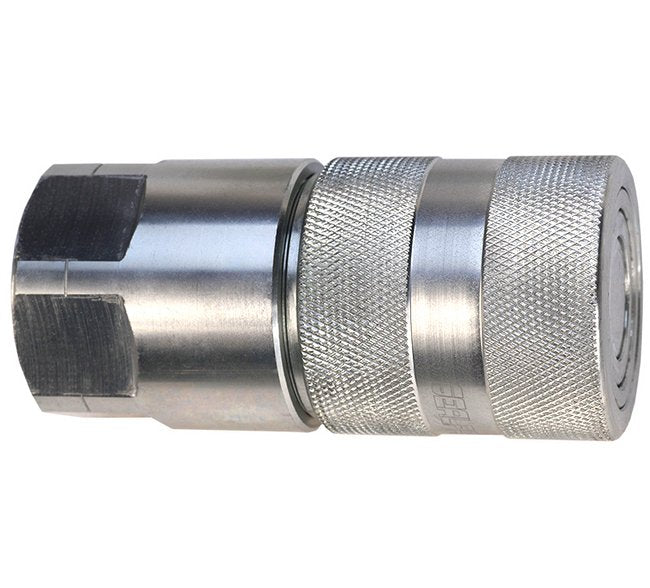

Meet your hydraulic coupling needs with this Carbon Steel Flat Face Quick Connect Hydraulic Socket. Made from high-quality carbon steel and featuring Buna-N seal material, this socket ensures reliable performance. With a working pressure of 2900 psi and a broad temperature range of -4 to +176 ºF, it's suitable for various industrial applications. Compliant with ISO 16208 standards, this socket is interchangeable with top brands like Aeroquip, Parker, and more, making it a versatile and cost-effective option for your hydraulic systems.
Product Specifications
Applications
Seal Fast Flat Face (Flush Face) Quick Connects/Disconnects are made according to ISO 16028 interchange specifications. They have a no-drip valve design to minimize fluid loss allowing for a safer and cleaner environment. These are also ideal where dirt is frequently exposed to the connection points. The female features a sleeve lock safety device to help reduce the chance of accidental disconnect.
Specifications Approvals
International Organization for Standardization (ISO 16208)
Specifications Body Size
1 in
Specifications Connection Type
Female | Socket
Specifications End Size
1 in. Female NPT
Specifications Hex Size
41 mm
Specifications Interchangeable With
Parker FEMSnap-Tite 74Aeroquip FD89Stucchi A
Specifications Material
Carbon Steel
Specifications Overall Diameter
70 mm | 2.75 in
Specifications Overall Length
117 mm | 4.60 in
Specifications Seal Material
Buna-N (Nitrile)
Specifications Style
Hydraulic Sockets
Specifications Surface Treatment
Zinc Plating
Specifications Working Pressure
2900 psi
Specifications Working Temperature Range
-4 to +176 ºF
