Carbon Steel Hydraulic Plug 1.37in Length Flat Face Quick Connect

Name: Carbon Steel Hydraulic Plug 1.37in Length Flat Face Quick Connect
Brand: Seal Fast, Inc.
SKU: COU-bc373e
Price: 24.99 USD
Availability: OutOfStock

SKU:COU-bc373e

Durable Carbon Steel Hydraulic Plug with Flat Face Design for Clean, Safe Connections. Compliant with ISO Standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Seal Fast Carbon Steel Hydraulic Plug is a reliable solution designed to meet ISO 16208 standards. Crafted from durable carbon steel, this plug features a 1/4in body size and 1/4in female NPT end size, with an overall length of 1.37 inches. Operating at a working pressure of 5075 psi and a temperature range of -4 to +176 ºF, it ensures optimal performance in various hydraulic applications. The flat face design with a sleeve lock safety device minimizes fluid loss, making it safer and cleaner. Compliant with ISO 16028 interchange specifications, this flat face quick connect is ideal for environments exposed to dirt, providing a secure and reliable connection.

Product Specifications

Applications

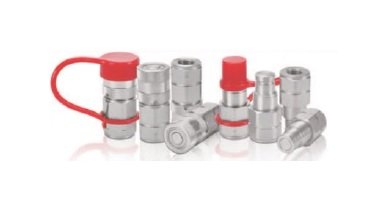

Seal Fast Flat Face (Flush Face) Quick Connects/Disconnects are made according to ISO 16028 interchange specifications. They have a no-drip valve design to minimize fluid loss allowing for a safer and cleaner environment. These are also ideal where dirt is frequently exposed to the connection points. The female features a sleeve lock safety device to help reduce the chance of accidental disconnect.

Specifications Approvals

International Organization for Standardization (ISO 16208)

Specifications Body Size

1/4 in

Specifications End Size

1/4 in. Female NPT

Specifications Hex Size

19 mm

Specifications Interchangeable With

Parker FEMSnap-Tite 74Aeroquip FD89Stucchi A

Specifications Material

Carbon Steel

Specifications Overall Diameter

20 mm | 0.78 in

Specifications Overall Length

35 mm | 1.37 in

Specifications Shape

Female

Specifications Style

Hydraulic Plugs

Specifications Working Pressure

5075 psi

Specifications Working Temperature Range

-4 to +176 ºF
